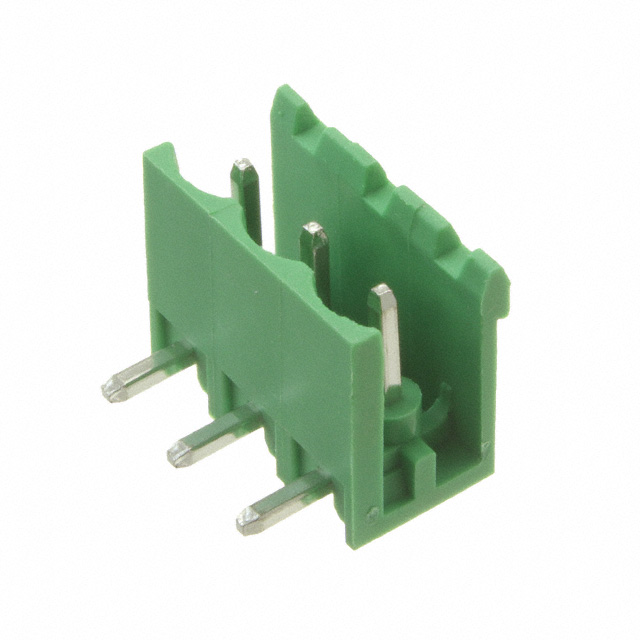

EBQA-03-C
ActiveAdam Tech
CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; 15A; 300V; THT
Deep-Dive with AI
Search across all available documentation for this part.
EBQA-03-C
ActiveAdam Tech
CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; MALE; 15A; 300V; THT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EBQA-03-C |
|---|---|
| Color | Green |
| Contact Material | Brass |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.157 in |
| Contact Tail Length | 4 mm |
| Header Orientation | 90°, Right Angle |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Voltage - UL | 300 V |
EBQA Series
| Part | Mounting Type | Type | Header Orientation | Positions Per Level | Pitch [x] | Pitch [x] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Number of Positions | Material Flammability Rating | Insulation Height | Insulation Height | Color | Voltage - UL | Termination Style | Contact Mating Finish | Contact Tail Length | Contact Tail Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Through Hole | Header Male Pins Shrouded (2 Side) | 90° Right Angle | 2 | 0.2 in | 5.08 mm | Brass | -40 °C | 105 ░C | 1 | 2 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm |
Adam Tech | Through Hole | Header Male Pins Shrouded (4 Side) | 90° Right Angle | 3 | 0.2 in | 5.08 mm | Brass | -40 °C | 105 ░C | 1 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm | |
Adam Tech | Through Hole | Header Male Pins Shrouded (2 Side) | 90° Right Angle | 4 | 0.197 in | 5 mm | Brass | -40 °C | 105 ░C | 1 | 4 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm |
Adam Tech | Through Hole | Header Male Pins Shrouded (4 Side) | 90° Right Angle | 3 | 0.197 in | 5 mm | Brass | -40 °C | 105 ░C | 1 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm | |
Adam Tech | Through Hole | Header Male Pins Shrouded (2 Side) | 90° Right Angle | 5 | 0.197 in | 5 mm | Brass | -40 °C | 105 ░C | 1 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm | |
Adam Tech | Through Hole | Header Male Pins Shrouded (2 Side) | 90° Right Angle | 4 | 0.2 in | 5.08 mm | Brass | -40 °C | 105 ░C | 1 | 4 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm |
Adam Tech | Through Hole | Header Male Pins Shrouded (4 Side) | 90° Right Angle | 2 | 0.2 in | 5.08 mm | Brass | -40 °C | 105 ░C | 1 | 2 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm |
Adam Tech | Through Hole | Header Male Pins Shrouded (4 Side) | 90° Right Angle | 2 | 0.197 in | 5 mm | Brass | -40 °C | 105 ░C | 1 | 2 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm |
Adam Tech | Through Hole | Header Male Pins Shrouded (2 Side) | 90° Right Angle | 3 | 0.197 in | 5 mm | Brass | -40 °C | 105 ░C | 1 | UL94 V-0 | 0.335 " | 8.51 mm | Green | 300 V | Solder | Tin | 0.157 in | 4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EBQA Series
3 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
