EBQA-03-D-C

Active

Adam Tech

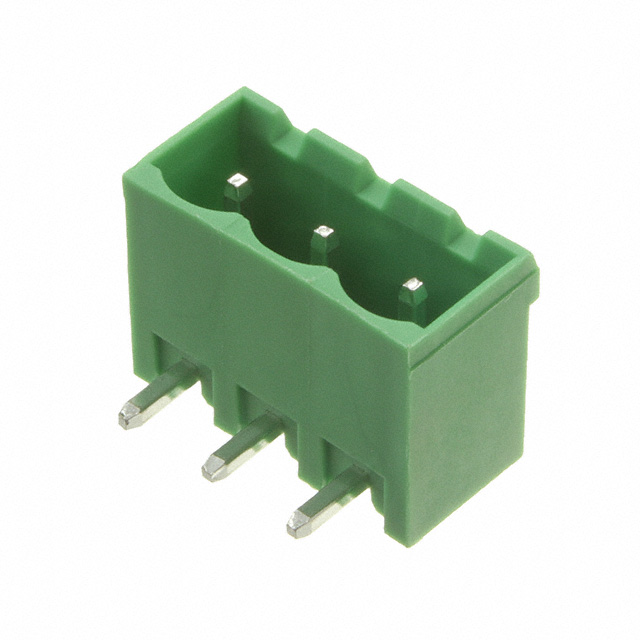

TERM BLOCK HDR 3POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Industry Brochure XCFR2.E333935- Terminal Blocks +1

EBQA-03-D-C

Active

Adam Tech

TERM BLOCK HDR 3POS 5.08MM

Deep-Dive with AI

DocumentsMedical Industry Brochure XCFR2.E333935- Terminal Blocks +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EBQA-03-D-C

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	90°, Right Angle
Insulation Height	0.335 "
Insulation Height	8.51 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

EBQA Series

Part	Mounting Type	Type	Header Orientation	Positions Per Level	Pitch [x]	Pitch [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Number of Positions	Material Flammability Rating	Insulation Height	Insulation Height	Color	Voltage - UL	Termination Style	Contact Mating Finish	Contact Tail Length	Contact Tail Length
Adam Tech EBQA-02-D	Through Hole	Header Male Pins Shrouded (2 Side)	90° Right Angle	2	0.2 in	5.08 mm	Brass	-40 °C	105 ░C	1	2	UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-03-D-C	Through Hole	Header Male Pins Shrouded (4 Side)	90° Right Angle	3	0.2 in	5.08 mm	Brass	-40 °C	105 ░C	1		UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-04-C	Through Hole	Header Male Pins Shrouded (2 Side)	90° Right Angle	4	0.197 in	5 mm	Brass	-40 °C	105 ░C	1	4	UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-03-C-C	Through Hole	Header Male Pins Shrouded (4 Side)	90° Right Angle	3	0.197 in	5 mm	Brass	-40 °C	105 ░C	1		UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-05-C	Through Hole	Header Male Pins Shrouded (2 Side)	90° Right Angle	5	0.197 in	5 mm	Brass	-40 °C	105 ░C	1		UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-04-D	Through Hole	Header Male Pins Shrouded (2 Side)	90° Right Angle	4	0.2 in	5.08 mm	Brass	-40 °C	105 ░C	1	4	UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-02-D-C	Through Hole	Header Male Pins Shrouded (4 Side)	90° Right Angle	2	0.2 in	5.08 mm	Brass	-40 °C	105 ░C	1	2	UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-02-C-C	Through Hole	Header Male Pins Shrouded (4 Side)	90° Right Angle	2	0.197 in	5 mm	Brass	-40 °C	105 ░C	1	2	UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm
Adam Tech EBQA-03-C	Through Hole	Header Male Pins Shrouded (2 Side)	90° Right Angle	3	0.197 in	5 mm	Brass	-40 °C	105 ░C	1		UL94 V-0	0.335 "	8.51 mm	Green	300 V	Solder	Tin	0.157 in	4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 0.17

Description

General part information

EBQA Series

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
