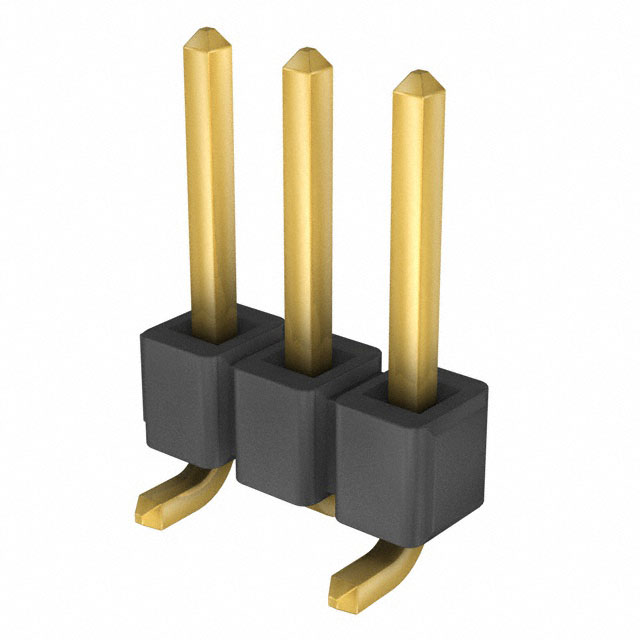

TSM-103-01-G-SV-TR

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 3 POS 2.54MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TSM Series Datasheet

TSM-103-01-G-SV-TR

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 3 POS 2.54MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsDatasheet TSM Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-103-01-G-SV-TR

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-103 Series

...

Part	Style	Contact Type	Contact Material	Contact Shape	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Features	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Mounting Type	Contact Finish - Post	Shrouding	Insulation Material	Material Flammability Rating	Fastening Type	Insulation Color	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TSM-103-01-T-SV-A-P-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	105 ░C	-55 °C	Board Guide Pick and Place	0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	1	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All
Samtec Inc. TSM-103-01-TM-DV-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	105 ░C	-55 °C		0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	2	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6
Samtec Inc. TSM-103-01-S-DH-SL	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.24 in	6.1 mm	125 °C	-55 °C	Solder Retention	0.1 in	2.54 mm	Solder	Header	0.23 in	5.84 mm	2	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6	Gold	30 Áin	0.76 Ám
Samtec Inc. TSM-103-02-L-SV-A-002	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C	Board Guide	0.1 in	2.54 mm	Solder	Cuttable Header		8.13 mm	1	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black					Gold	10 çin	0.25 çm	0.32 in	2
Samtec Inc. TSM-103-01-G-SV-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C		0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	1	Surface Mount	Gold	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All				Gold	10 çin	0.25 çm			3 µin	0.076 µm
Samtec Inc. TSM-103-02-T-DH-A	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.24 in	6.1 mm	105 ░C	-55 °C	Board Guide	0.1 in	2.54 mm	Solder	Header		8.13 mm	2	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6				0.32 in
Samtec Inc. TSM-103-01-F-DV-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C		0.1 in	2.54 mm	Solder	Cuttable Header	0.23 in	5.84 mm	2	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All	2.54 mm	0.1 in	6	Gold	3 µin	0.076 µm
Samtec Inc. TSM-103-01-T-SH-002	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.12 in	3.05 mm	105 ░C	-55 °C		0.1 in	2.54 mm	Solder	Header	0.23 in	5.84 mm	1	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black									2
Samtec Inc. TSM-103-04-F-SV-P-TR	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.1 in	2.54 mm	125 °C	-55 °C	Pick and Place	0.1 in	2.54 mm	Solder	Cuttable Header		3.05 mm	1	Surface Mount	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All				Gold	3 µin	0.076 µm	0.12 in
Samtec Inc. TSM-103-04-TM-SH-A	Board to Board Cable	Male Pin	Phosphor Bronze	Square	0.12 in	3.05 mm	105 ░C	-55 °C	Board Guide	0.1 in	2.54 mm	Solder	Header		3.05 mm	1	Surface Mount Right Angle	Tin	Unshrouded	Liquid Crystal Polymer (LCP)	UL94 V-0	Push-Pull	Black	All							0.12 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	350	$ 0.51

Description

General part information

TSM-103 Series

Connector Header Surface Mount 3 position 0.100" (2.54mm)
