TSM-103-01-T-SH-002

Active

Samtec Inc.

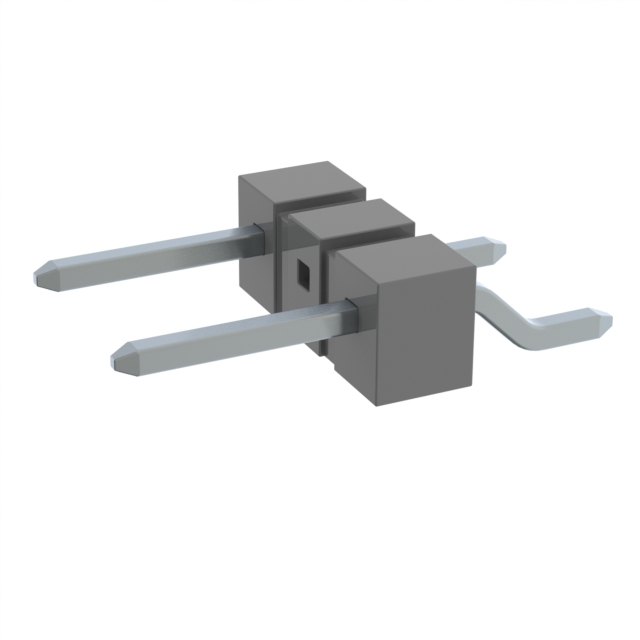

CONN HEADER SMD R/A 3POS 2.54MM

TSM-103-01-T-SH-002

Active

Samtec Inc.

CONN HEADER SMD R/A 3POS 2.54MM

Description Specifications Series Pricing CAD Documents

Description

General part information

TSM-103 Series

Connector Header Surface Mount, Right Angle 3 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-103-01-T-SH-002

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.12 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	3
Number of Positions Loaded	2
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

TSM-103 Series

...

Part	Termination	Contact Finish - Post	Contact Material	Contact Shape	Shrouding	Features	Number of Positions	Mounting Type	Contact Type	Contact Length - Mating	Insulation Material	Style	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Color	Pitch - Mating	Contact Finish - Mating	Fastening Type	Material Flammability Rating	Connector Type	Number of Rows	Number of Positions Loaded	Insulation Height	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Number of Positions Loaded
Samtec Inc. TSM-103-01-T-SV-A-P-TR	Solder	Tin	Phosphor Bronze	Square	Unshrouded	Board Guide Pick and Place	3	Surface Mount	Male Pin	0.23 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	105 °C	Black	0.1 in	Tin	Push-Pull	UL94 V-0	Cuttable Header	1	All	0.1 in
Samtec Inc. TSM-103-01-TM-DV-TR	Solder	Tin	Phosphor Bronze	Square	Unshrouded		6	Surface Mount	Male Pin	0.23 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	105 °C	Black	0.1 in	Tin	Push-Pull	UL94 V-0	Cuttable Header	2	All	0.1 in	0.1 in
Samtec Inc. TSM-103-02-H-DV	Solder	Gold	Phosphor Bronze	Square	Unshrouded		6	Surface Mount	Male Pin	0.32 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	125 °C	Black	0.1 in	Gold	Push-Pull	UL94 V-0	Cuttable Header	2	All	0.1 in	0.1 in	30 µin	3 µin
Samtec Inc. TSM-103-01-S-DH-SL	Solder	Tin	Phosphor Bronze	Square	Unshrouded	Solder Retention	6	Right Angle Surface Mount	Male Pin	0.23 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	125 °C	Black	0.1 in	Gold	Push-Pull	UL94 V-0	Header	2	All	0.24 in	0.1 in	30 µin
Samtec Inc. TSM-103-02-L-SV-A-002	Solder	Tin	Phosphor Bronze	Square	Unshrouded	Board Guide	3	Surface Mount	Male Pin	0.32 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	125 °C	Black	0.1 in	Gold	Push-Pull	UL94 V-0	Cuttable Header	1		0.1 in		10 µin		2
Samtec Inc. TSM-103-01-G-SV-TR	Solder	Gold	Phosphor Bronze	Square	Unshrouded		3	Surface Mount	Male Pin	0.23 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	125 °C	Black	0.1 in	Gold	Push-Pull	UL94 V-0	Cuttable Header	1	All	0.1 in		10 µin	3 µin
Samtec Inc. TSM-103-02-T-DH-A	Solder	Tin	Phosphor Bronze	Square	Unshrouded	Board Guide	6	Right Angle Surface Mount	Male Pin	0.32 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	105 °C	Black	0.1 in	Tin	Push-Pull	UL94 V-0	Header	2	All	0.24 in	0.1 in
Samtec Inc. TSM-103-01-F-DV-TR	Solder	Tin	Phosphor Bronze	Square	Unshrouded		6	Surface Mount	Male Pin	0.23 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	125 °C	Black	0.1 in	Gold	Push-Pull	UL94 V-0	Cuttable Header	2	All	0.1 in	0.1 in	3 µin
Samtec Inc. TSM-103-01-T-SH-002	Solder	Tin	Phosphor Bronze	Square	Unshrouded		3	Right Angle Surface Mount	Male Pin	0.23 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	105 °C	Black	0.1 in	Tin	Push-Pull	UL94 V-0	Header	1		0.12 in				2
Samtec Inc. TSM-103-04-F-SV-P-TR	Solder	Tin	Phosphor Bronze	Square	Unshrouded	Pick and Place	3	Surface Mount	Male Pin	0.12 in	Liquid Crystal Polymer (LCP)	Board Board or Cable	-55 °C	125 °C	Black	0.1 in	Gold	Push-Pull	UL94 V-0	Cuttable Header	1	All	0.1 in		3 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TSM-103-01-T-SH-002 | Datasheet
