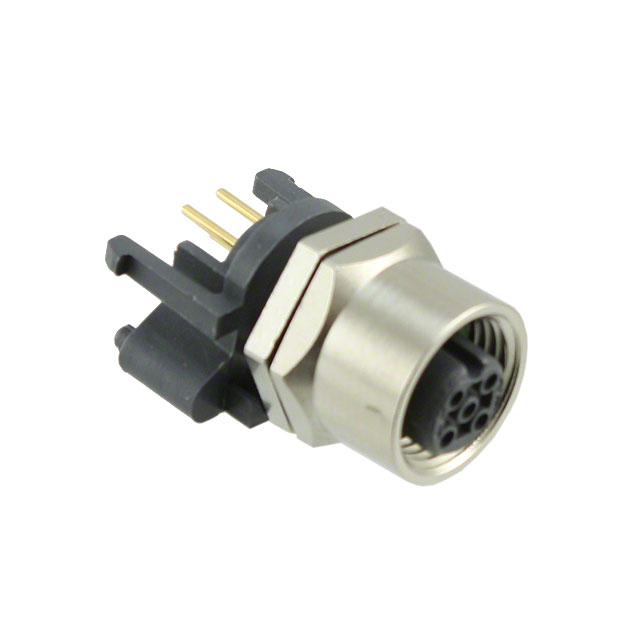

43-01173
ActiveAmphenol CONEC
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43-01173
ActiveAmphenol CONEC
CONN PLUG FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43-01173 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.13 | |
| 10 | $ 9.87 | |||
| 30 | $ 9.49 | |||
| 50 | $ 9.11 | |||
| 100 | $ 8.60 | |||
| 250 | $ 7.84 | |||
| 500 | $ 7.34 | |||
| 1000 | $ 6.73 | |||
Description
General part information
43-0117 Series
5 Position Circular Connector Plug, Female Sockets Solder
