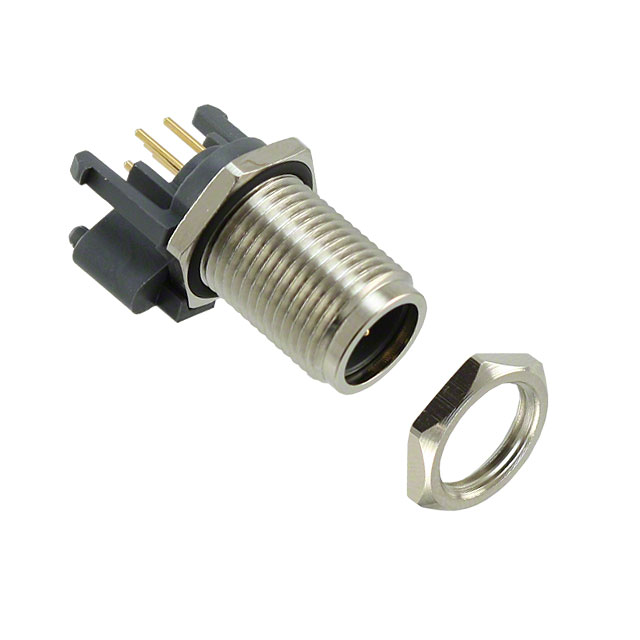

43-01177

Active

Amphenol CONEC

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01177

Active

Amphenol CONEC

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01177

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

43-0117 Series

Part	Contact Material	Current Rating (Amps)	Mounting Type	Mounting Feature	Color	Ingress Protection	Insert Material	Voltage Rating	Shell Size - Insert	Orientation	Shell Finish	Primary Material	Contact Finish - Mating	Connector Type	Termination	Number of Positions	Shell Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Features	Material Flammability Rating
Amphenol CONEC 43-01179	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	250 VDC	M12-4	A	Nickel	Metal	Gold	Female Sockets Plug	Solder	4	Copper Zinc	Shielded	-30 ░C	85 °C	Board Guide	UL94
Amphenol CONEC 43-01177	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	60 VDC	M12-5	A	Nickel	Metal	Gold	Male Pins Receptacle	Solder		Copper Zinc	Shielded	-30 ░C	85 °C	Board Guide Board Lock	UL94 V-0
Amphenol CONEC 43-01176	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	60 VDC	M12-5	A	Nickel	Metal	Gold	Male Pins Receptacle	Solder		Copper Zinc	Unshielded	-30 ░C	85 °C	Board Guide Board Lock	UL94 V-0
Amphenol CONEC 43-01172	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	60 VDC	M12-5	A	Nickel	Metal	Gold	Female Sockets Plug	Solder		Copper Zinc	Unshielded	-30 ░C	85 °C	Board Guide Board Lock	UL94
Amphenol CONEC 43-01173	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	60 VDC	M12-5	A	Nickel	Metal	Gold	Female Sockets Plug	Solder		Copper Zinc	Shielded	-30 ░C	85 °C	Board Guide Board Lock	UL94
Amphenol CONEC 43-01174	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	250 VDC	M12-4	A	Nickel	Metal	Gold	Male Pins Receptacle	Solder	4	Copper Zinc	Unshielded	-30 ░C	85 °C	Board Guide Board Lock	UL94 V-0
Amphenol CONEC 43-01175	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA) Nylon Glass Filled	250 VDC	M12-4	A	Nickel	Metal	Gold	Male Pins Receptacle	Solder	4	Copper Zinc	Shielded	-30 ░C	85 °C	Board Guide Board Lock	UL94 V-0
Amphenol CONEC 43-01171	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	250 VDC	M12-4	A	Nickel	Metal	Gold	Female Sockets Plug	Solder	4	Copper Zinc	Shielded	-30 ░C	85 °C	Board Guide Board Lock	UL94
Amphenol CONEC 43-01170	Copper Zinc	4 A	Panel Mount Through Hole	Bulkhead - Front Side Nut	Silver	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	250 VDC	M12-4	A	Nickel	Metal	Gold	Female Sockets Plug	Solder	4	Copper Zinc	Unshielded	-30 ░C	85 °C	Board Guide Board Lock	UL94

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.44
		10	$ 5.71
		25	$ 5.16
		50	$ 4.78
		100	$ 4.76

Description

General part information

43-0117 Series

5 Position Circular Connector Receptacle, Male Pins Solder
