30-02607

Active

Tensility International Corp

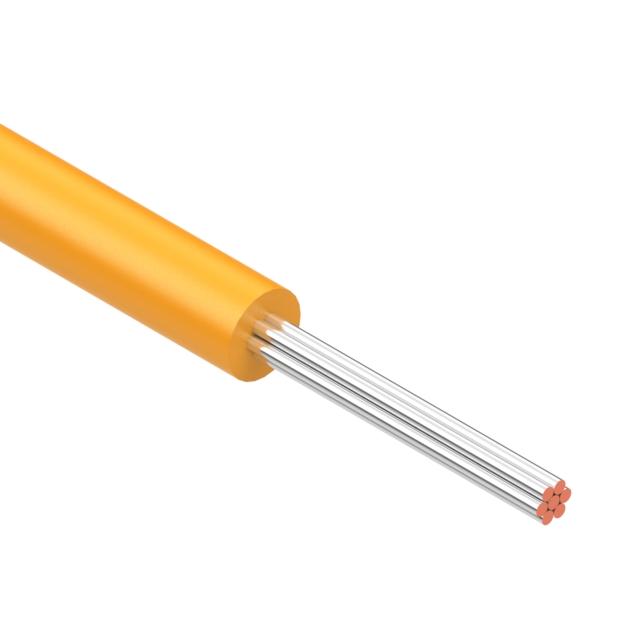

HOOK-UP STRND 30AWG ORNG 1000.7'

Deep-Dive with AI

Search across all available documentation for this part.

30-02607

Active

Tensility International Corp

HOOK-UP STRND 30AWG ORNG 1000.7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	30-02607	- Series

1st Connector Gender	-	Male Pins
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Connector Number of Positions	-	8 positions
1st Connector Number of Positions Loaded	-	All
1st Connector Orientation	-	X
1st Connector Shell Size - Insert	-	M12
1st Connector Type	-	Plug
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Connector Number of Positions	-	8
2nd Connector Number of Positions Loaded	-	All
2nd Connector Orientation	-	X
2nd Connector Shell Size - Insert	-	M12
2nd Connector Type	-	Plug
Assembly Configuration	-	Standard
Cable Material	-	Polyvinyl Chloride (PVC)
Cable Type	Hook-Up	Round Cable, Hook-Up, Multi-Conductor, Round
Color	-	Black
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	-	7 - 41
Conductor Strand	-	0.0063 - 0.0185 in
Conductor Strand	-	7
Conductor Strand	-	0.0063 in
Conductor Strand	-	17 - 41 Strands
Conductor Strand	-	0.005 - 19 in
Conductor Strand	-	0.0031 - 0.0118 in
Conductor Strand	-	0.0063 "
Connector Type	-	Plug to Plug, Circular 08 pos Male to RJ45, 8p8c
Features	-	24 - 26 AWG
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Jacket (Insulation) Diameter	-	0.067 "
Jacket (Insulation) Diameter	-	1.7 mm
Jacket (Insulation) Diameter [diameter]	0.89 mm	0.89 - 5.59 mm
Jacket (Insulation) Diameter [diameter]	0.035 in	0.035 - 0.22 "
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)	Fluorinated Ethylene-Propylene (FEP), Polyphenylene Ether, Modified (mPPE)
Jacket (Insulation) Thickness	0.013 in	0.013 - 0.015 in
Jacket (Insulation) Thickness	0.33 mm	0.33 - 0.381 mm
Jacket Color	Orange	White, Black, Blue, Gray, Red, Green, Orange, Brown, Purple, Yellow
Length	30 m	1.5 - 153 m
Length	98.43 ft	4.92 - 502 '
Length	-	Enter Number of Meters in Order Quantity
Length [x]	152 m, 1 m	1 - 152 m
Length [x]	498.7 ft, 3.28 ft	3.28 - 498.7 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Conductors	-	2
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Operating Temperature [Max]	200 °C	105 - 200 °C
Operating Temperature [Min]	-80 °C	-80 - -40 °C
Ratings	UL Style 1332	UL Style 1332, UL Style 21516
Shielding	-	Shielded
Spool Size	1000.7 ft	502 - 1000.7 ft
Spool Size	305 m	153 - 305 m
Style	-	Cat6a
Usage	-	Industrial Environments, Cat6a, Cat6a, Industrial Environments - IP67
Voltage	300 V	300 - 600 V
Wire Gauge	30 AWG	10 - 32 AWG

- Series

CBL 8POS MALE TO MALE 4.92'

...

Part	Length	Length	Cable Type	Shielding	Mounting Type	Number of Positions/Contacts	Connector Type	Features	Color	Style	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Ratings	Conductor Strand [custom]	Conductor Strand [diameter]	Spool Size	Spool Size	Jacket (Insulation) Material	Jacket Color	Number of Conductors	Conductor Strand [x]	Conductor Strand [y]	Conductor Strand [custom]	Conductor Strand	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand [custom]
Tensility International Corp 10-03974	4.92 '	1.5 m	Round Cable	Shielded	Free Hanging (In-Line)	8p8c (RJ45, Ethernet)	Plug to Plug	26 AWG	Black	Cat6a
Tensility International Corp 10-03973	32.81 ft	10 m	Round Cable	Shielded	Free Hanging (In-Line)	8p8c (RJ45, Ethernet)	Plug to Plug	24 AWG	Black	Cat6a
Tensility International Corp 30-02543	98.43 ft	30 m	Hook-Up								18 AWG	1.8 mm	0.071 "	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332	19	0.0093 in	1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)
Tensility International Corp 10-03972			Round Cable	Shielded	Free Hanging (In-Line)	8p8c (RJ45, Ethernet)	Plug to Plug	24 AWG	Black	Cat6a
Tensility International Corp 30-03178	502 ft	153 m	Multi-Conductor								26 AWG	2.59 mm	0.102 in				-40 °C	105 ░C	0.015 in	0.381 mm	600 V	UL Style 21516					Polyphenylene Ether, Modified (mPPE)	Black, White	2	7	0.0063 in
Tensility International Corp 30-02605	98.43 ft	30 m	Hook-Up								30 AWG	0.89 mm	0.035 in	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332			1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Blue
Tensility International Corp 30-02585	98.43 ft	30 m	Hook-Up								26 AWG	1.14 mm	0.045 "	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332			1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Blue		7	0.0063 in
Tensility International Corp 30-02559	98.43 ft	30 m	Hook-Up								20 AWG	1.63 mm	0.064 in	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332		0.0075 in	1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Gray				19 Strands
Tensility International Corp 30-02595	98.43 ft	30 m	Hook-Up								28 AWG	1.04 mm	0.041 in	Copper, Tinned	1 m, 152 m	3.28 ft, 498.7 ft	-80 °C	200 °C	0.013 in	0.33 mm	300 V	UL Style 1332	7		1000.7 ft	305 m	Fluorinated Ethylene-Propylene (FEP)	Blue					0.005 in
Tensility International Corp 30-03171	502 ft	153 m	Multi-Conductor								32 AWG						-40 °C	105 ░C	0.015 in	0.381 mm	600 V	UL Style 21516	7				Polyphenylene Ether, Modified (mPPE)	Black, Red	2					0.067 "	1.7 mm	0.0031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.25
		1	$ 1.25
		1	$ 138.12
		1	$ 29.57
		5	$ 24.19
		5	$ 1.02
		5	$ 113.00
		5	$ 4.29
		10	$ 18.82
		10	$ 0.80
		10	$ 3.34
		10	$ 87.89
	Spool	1	$ 145.29
		2	$ 138.24
		3	$ 134.25
		5	$ 129.36
		7	$ 126.23
		10	$ 122.98
		25	$ 114.93
		50	$ 109.13

Description

General part information

- Series

30 AWG Hook-Up Wire 7/0.0039" Orange 300V 1000.7' (305.0m)
