SJS861401

Active

AMPHENOL PCD

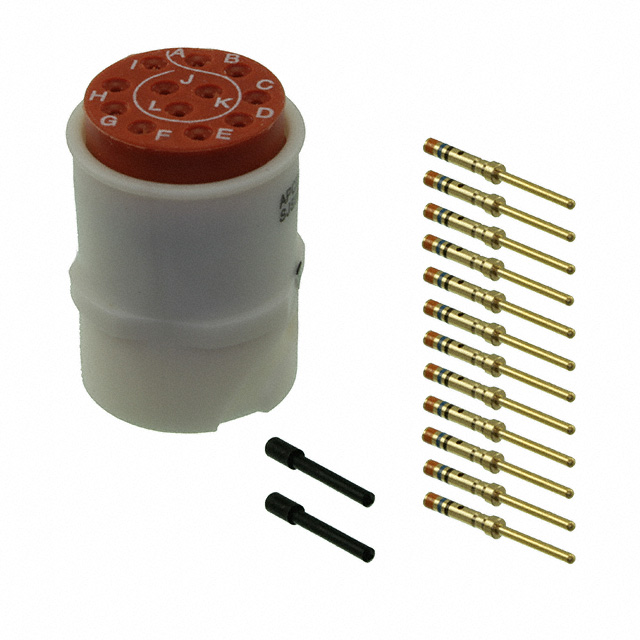

CONN RCPT MALE 12POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

SJS861401

Active

AMPHENOL PCD

CONN RCPT MALE 12POS GOLD CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 54.42

Description

General part information

SJS86 Series

12 Position Circular Connector Receptacle, Male Pins Crimp
