SJS860200

Active

AMPHENOL PCD

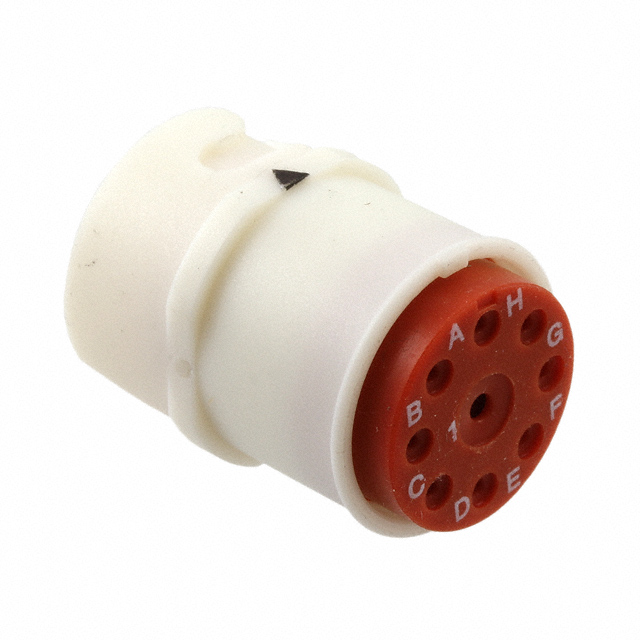

CONN RCPT HSNG MALE 9POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

SJS860200

Active

AMPHENOL PCD

CONN RCPT HSNG MALE 9POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.98
		10	$ 46.78
		25	$ 44.98
		50	$ 43.48
		100	$ 41.08
		250	$ 39.88

Description

General part information

SJS86 Series

9 Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJS860200	SJS86 Series

Cable Opening	-	11.43 mm
Cable Opening	-	0.45 in
Color	-	White
Connector Type	Receptacle Housing	Receptacle, Male Pins, Receptacle Housing, Female Sockets, Plug, Plug Housing
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1.27 µm
Contact Finish Thickness - Mating	-	50 µin
Contact Material	-	Copper Alloy
Contact Shape	Circular	Circular
Contact Size	16, 22D	22D, 16, 22D (6), 16 (4)
Contact Size	-	4 - 5
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	5 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Dust Cap, Coupling Nut
Housing Color	White	White
Ingress Protection	IP67 - Dust Tight, Waterproof	Environment Sealed, IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	9	9 - 12
Operating Temperature [Max]	125 °C	125 - 155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Primary Material	-	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8	7 - 10
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	For Male Pins	For Male Pins, For Female Sockets

SJS86 Series

CONN RCPT MALE 12POS GOLD CRIMP

Part	Mounting Type	Termination	Connector Type	Primary Material	Shell Size - Insert	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Ingress Protection	Contact Finish - Mating	Shell Material	Fastening Type	Contact Material	Color	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Contact Size	Note	Type	Contact Shape	Housing Color	Features	Contact Type
AMPHENOL PCD SJS861401	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	8	5 A	125 °C	-65 ░C	12	Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS861201	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	10		125 °C	-65 ░C	10	Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS862401	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	7	7.5 A	125 °C	-65 ░C		IP67 - Dust Tight, Waterproof	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock	Copper Alloy	White	UL94 V-0	11.43 mm	0.45 in	1.27 µm	50 µin	Unshielded
AMPHENOL PCD SJS860501	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	8	5 A	125 °C	-65 ░C		Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS860500	Free Hanging (In-Line)		Receptacle Housing		8		155 °C	-65 ░C		IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	22D	Contacts Not Included	For Male Pins	Circular	White	Dust Cap	Crimp
AMPHENOL PCD SJS860511	Free Hanging (In-Line)	Crimp	Female Sockets, Plug	Plastic	8	5 A	125 °C	-65 ░C		Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock
AMPHENOL PCD SJS862400	Free Hanging (In-Line)	Crimp	Male Pins, Receptacle	Plastic	7	7.5 A	125 °C	-65 ░C		Environment Sealed	Gold	Polyamide (PA66), Nylon 6/6	Bayonet Lock	Copper Alloy	White	UL94 V-0
AMPHENOL PCD SJS860100	Free Hanging (In-Line)		Plug Housing		8		125 °C	-65 ░C	9	IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	16, 22D	Contacts Not Included	For Female Sockets	Circular	White	Coupling Nut	Crimp
AMPHENOL PCD SJS860200	Free Hanging (In-Line)		Receptacle Housing		8		125 °C	-65 ░C	9	IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	16, 22D	Contacts Not Included	For Male Pins	Circular	White		Crimp
AMPHENOL PCD SJS861100	Free Hanging (In-Line)		Plug Housing		10		125 °C	-65 ░C	10	IP67 - Dust Tight, Waterproof		Polyamide (PA66), Nylon 6/6	Bayonet Lock			UL94 V-0					Unshielded	16 (4), 22D (6)	Contacts Not Included	For Female Sockets	Circular	White	Coupling Nut	Crimp
