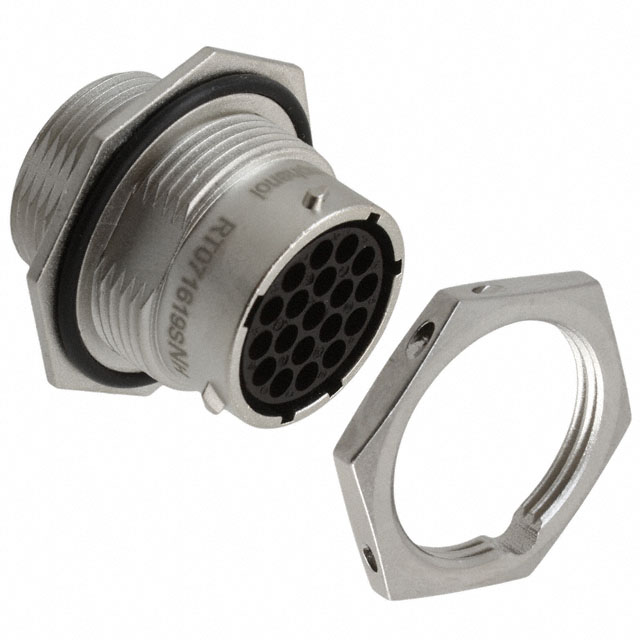

RT071619SNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 19POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 19POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	RT071619SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Shielding	Shielded
Type	For Female Sockets

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fastening Type	Voltage Rating	Shell Material	Ingress Protection	Orientation	Number of Positions	Termination	Color	Shell Finish	Contact Finish - Mating	Contact Finish Thickness - Mating	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Mounting Feature	Primary Material	Housing Color	Note	Insert Material	Type	Contact Size	Material Flammability Rating	Features	Shielding	Contact Type	Contact Shape
Amphenol Sine Systems Corp RT071619SNH-K	-40 °C	105 ░C	13 A	Bayonet Lock	250 VAC	Zinc Die Cast	IP67 - Dust Tight Waterproof	N	19	Crimp	Silver	Nickel	Gold	Flash	Receptacle Female Sockets	16	19	Bulkhead - Front Side Nut	Metal
Amphenol Sine Systems Corp RT071619PNHEC03	-40 °C	125 °C		Bayonet Lock		Zinc Alloy	IP67 - Dust Tight Waterproof	N	19			Nickel			Receptacle Housing	16	19	Bulkhead - Front Side Nut	Metal	Silver	Contacts Not Included	Thermoplastic	For Male Pins	16	UL94 V-0	Cap (Cover)	Shielded	Crimp	Circular
Amphenol Sine Systems Corp RT071619PNHECR
Amphenol Sine Systems Corp RT071619SNH	-40 °C	105 ░C		Bayonet Lock		Zinc Alloy	IP67 - Dust Tight Waterproof	N	19			Nickel			Receptacle Housing	16	19	Bulkhead - Front Side Nut		Silver	Contacts Not Included	Thermoplastic	For Female Sockets	16	UL94 V-0		Shielded	Crimp	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle Housing Panel Mount
