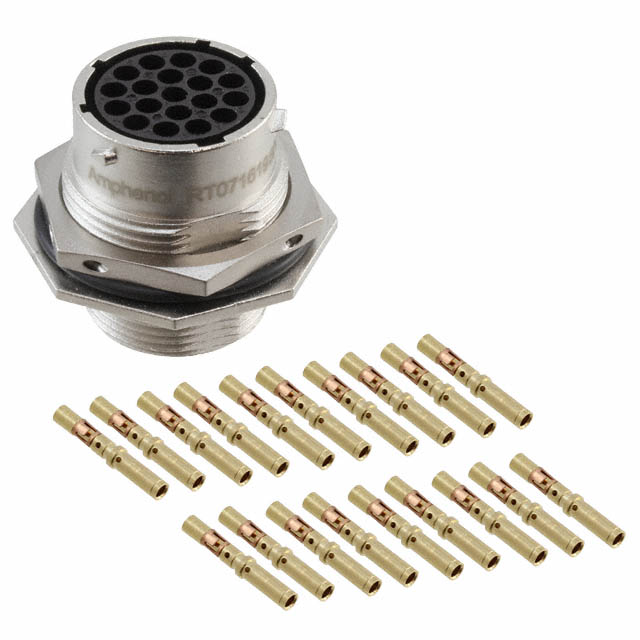

RT071619SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 19POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 19POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	RT071619SNH-K

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Termination	Crimp
Voltage Rating	250 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fastening Type	Voltage Rating	Shell Material	Ingress Protection	Orientation	Number of Positions	Termination	Color	Shell Finish	Contact Finish - Mating	Contact Finish Thickness - Mating	Connector Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Mounting Feature	Primary Material	Housing Color	Note	Insert Material	Type	Contact Size	Material Flammability Rating	Features	Shielding	Contact Type	Contact Shape
Amphenol Sine Systems Corp RT071619SNH-K	-40 °C	105 ░C	13 A	Bayonet Lock	250 VAC	Zinc Die Cast	IP67 - Dust Tight Waterproof	N	19	Crimp	Silver	Nickel	Gold	Flash	Receptacle Female Sockets	16	19	Bulkhead - Front Side Nut	Metal
Amphenol Sine Systems Corp RT071619PNHEC03	-40 °C	125 °C		Bayonet Lock		Zinc Alloy	IP67 - Dust Tight Waterproof	N	19			Nickel			Receptacle Housing	16	19	Bulkhead - Front Side Nut	Metal	Silver	Contacts Not Included	Thermoplastic	For Male Pins	16	UL94 V-0	Cap (Cover)	Shielded	Crimp	Circular
Amphenol Sine Systems Corp RT071619PNHECR
Amphenol Sine Systems Corp RT071619SNH	-40 °C	105 ░C		Bayonet Lock		Zinc Alloy	IP67 - Dust Tight Waterproof	N	19			Nickel			Receptacle Housing	16	19	Bulkhead - Front Side Nut		Silver	Contacts Not Included	Thermoplastic	For Female Sockets	16	UL94 V-0		Shielded	Crimp	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle, Female Sockets Crimp
