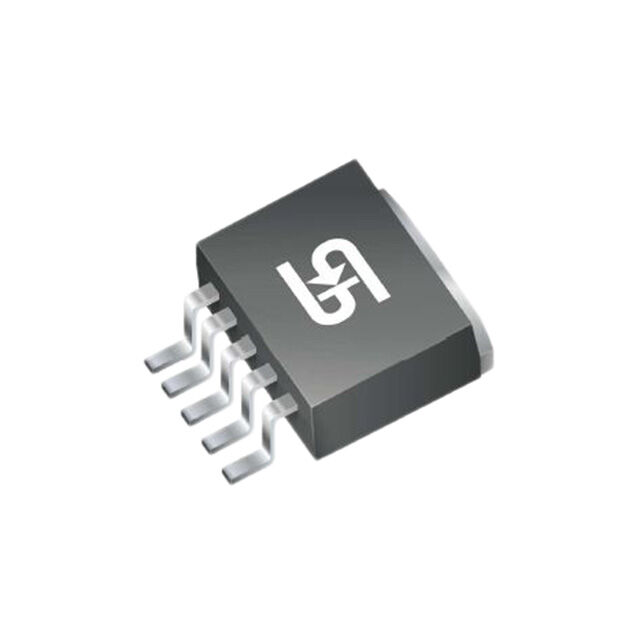

TS2596CM5

Active

Taiwan Semiconductor Corporation

3A STEP DOWN ADJUSTABLE SWITCHING VOLTAGE REGULATOR

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

3A STEP DOWN ADJUSTABLE SWITCHING VOLTAGE REGULATOR

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output (Min/Fixed)	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Function	Number of Outputs	Mounting Type	Current - Output	Supplier Device Package	Output Type	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Output Type
Taiwan Semiconductor Corporation TS2596CM5	1.23 V	Buck	125 °C	-40 °C	Positive	Step-Down	1	Surface Mount	3 A	TO-263-5	Adjustable	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4.5 V	38.5 V
Taiwan Semiconductor Corporation TS2596CM5 RNG	1.23 V	Buck	125 ¯C	-40 °C	Positive	Step-Down	1	Surface Mount	3 A	TO-263-5	Adjustable	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4.5 V	38.5 V
Taiwan Semiconductor Corporation TS2596CM533 RNG	3.3 V	Buck	125 ¯C	-40 °C	Positive	Step-Down	1	Surface Mount	3 A	TO-263-5		D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4.5 V		1.81 mOhm
Taiwan Semiconductor Corporation TS2596CM550	5 V	Buck	125 °C	-40 °C	Positive	Step-Down	1	Surface Mount	3 A	TO-263-5		D2PAK (5 Leads + Tab) TO-263-6 TO-263BA	4.5 V		1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 1.23

General part information

Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
