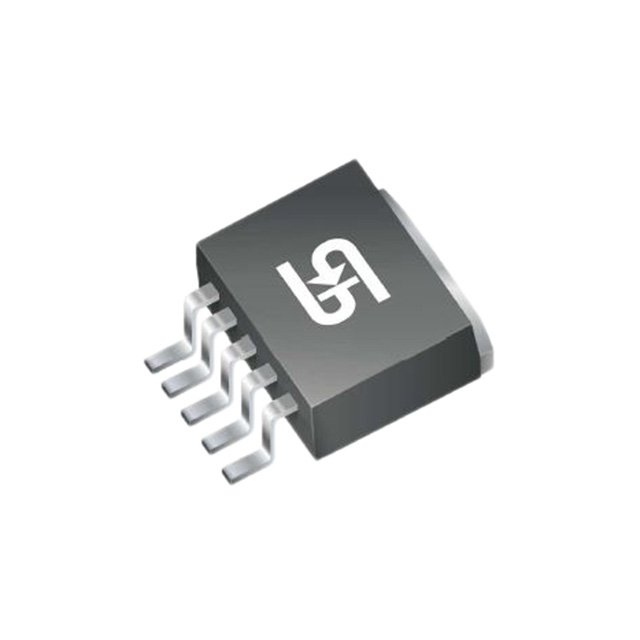

TS2596CM5 RNG

Active

IC REG BUCK ADJ 3A TO263-5

Active

IC REG BUCK ADJ 3A TO263-5

Description

General part information

Buck Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA

Parameters and characteristics for this part

Part	Package Name	Number of Outputs	Frequency - Switching	Voltage - Output (Max)	Output Type	Voltage - Input (Min)	Voltage - Output (Min/Fixed)	Function	Voltage - Input (Max)	Mounting Type	Output Configuration	Current - Output	Topology	Package Leads	Synchronous Rectifier	Operating Temperature (Max)	Operating Temperature (Min)	Package Length	Package Width
Taiwan Semiconductor Corporation TS2596CM5	D2PAK TO-263-5	1	150 kHz	38.5 V	Adjustable	4.5 V	1.23 V	Step-Down	40 V	Surface Mount	Positive	3 A	Buck	5 Leads	No	125 °C	-40 °C
Taiwan Semiconductor Corporation TS2596CM5 RNG	D2PAK TO-263-5	1	150 kHz	38.5 V	Adjustable	4.5 V	1.23 V	Step-Down	40 V	Surface Mount	Positive	3 A	Buck	5 Leads	No	125 °C	-40 °C
Taiwan Semiconductor Corporation TS2596CM533 RNG	D2PAK TO-263-5	1	150 kHz		Fixed	4.5 V	3.3 V	Step-Down	40 V	Surface Mount	Positive	3 A	Buck	5 Leads	No	125 °C	-40 °C
Taiwan Semiconductor Corporation TS2596SCS50 RLG	8-SOIC 8-SOP	1	150 kHz		Fixed	4.5 V	5 V	Step-Down	24 V	Surface Mount	Positive	2 A	Buck		No	125 °C	-40 °C	0.154 in	3.9 mm
Taiwan Semiconductor Corporation TS2596CM550	D2PAK TO-263-5	1	150 kHz		Fixed	4.5 V	5 V	Step-Down	40 V	Surface Mount	Positive	3 A	Buck	5 Leads	No	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
