TPS92410D
ActiveSWITCH-CONTROLLED, DIRECT DRIVE, LINEAR CONTROLLER FOR OFFLINE LED DRIVERS
Deep-Dive with AI
Search across all available documentation for this part.
TPS92410D
ActiveSWITCH-CONTROLLED, DIRECT DRIVE, LINEAR CONTROLLER FOR OFFLINE LED DRIVERS
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS92410D | TPS92410 Series |
|---|---|---|
| Dimming | Analog, TRIAC | Analog, TRIAC |
| Features | - | Dimmable |
| Internal Switch(s) | False | False |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 3 |
| Package / Case | 0.154 in, 13 mm Dia | 0.154 - 13 in |
| Package / Case | 3.9 mm | 3.9 mm |

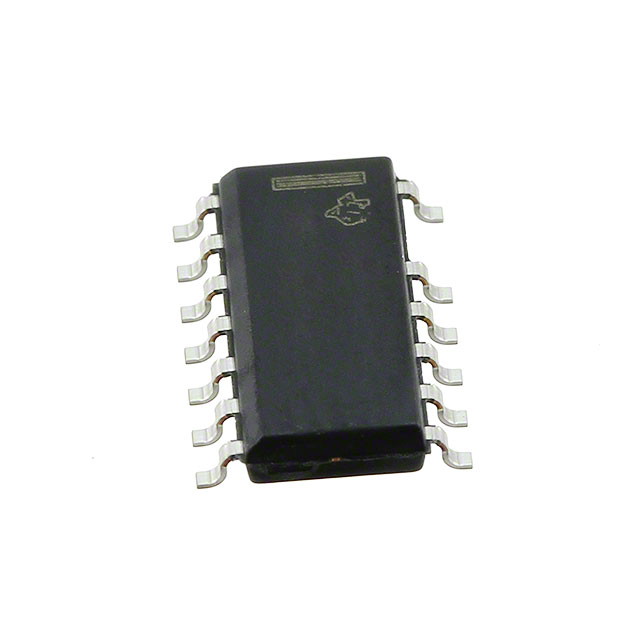

| Package / Case | 14-SOIC | 14-SOIC |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 13-SOIC | 13-SOIC |
| Type | AC DC Offline Switcher | AC DC Offline Switcher |
| Voltage - Input | - | 135 - 260 VAC |
| Voltage - Input | - | 90 - 190 VAC |
| Voltage - Output | - | 20 - 160 V |
| Voltage - Supply (Max) [Max] | 450 V | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS92410 Series
EVAL BOARD FOR TPS92410
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Features | Outputs and Type | Outputs and Type | Voltage - Output | Supplied Contents | Supplier Device Package | Voltage - Supply (Max) [Max] | Dimming | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Package / Case | Package / Case | Number of Outputs | Type | Mounting Type | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS92410EVM-002TPS92410, TPS92411 3, Non-Isolated Outputs LED Driver Evaluation Board | 260 VAC | 190 VAC | Dimmable | Non-Isolated | 3 | 40 V, 80 V, 160 V | Board(s) | ||||||||||||
Texas Instruments TPS92410DThe TPS92410 is an advanced linear driver with high voltage start-up intended for use in low power, offline LED lighting applications. It can be used to regulate the average LED current through LEDs in conjunction with the TPS92411 direct drive switch.
The TPS92410 features a reference voltage that can be used to set the current level as well as the thermal foldback threshold. A multiplier is included to obtain excellent power factor while maintaining good line regulation. Other features include under-voltage lockout, over-voltage protection, forward phase dimmer detection with change to constant current mode, thermal foldback, and thermal shutdown.
The TPS92410 is an advanced linear driver with high voltage start-up intended for use in low power, offline LED lighting applications. It can be used to regulate the average LED current through LEDs in conjunction with the TPS92411 direct drive switch.
The TPS92410 features a reference voltage that can be used to set the current level as well as the thermal foldback threshold. A multiplier is included to obtain excellent power factor while maintaining good line regulation. Other features include under-voltage lockout, over-voltage protection, forward phase dimmer detection with change to constant current mode, thermal foldback, and thermal shutdown. | 13-SOIC | 450 V | Analog, TRIAC | 125 ¯C | -40 °C | 0.154 in, 13 mm Dia | 3.9 mm | 14-SOIC | 1 | AC DC Offline Switcher | Surface Mount | ||||||||
Texas Instruments TPS92410EVM-001TPS92410, TPS92411 3, Non-Isolated Outputs LED Driver Evaluation Board | 135 VAC | 90 VAC | Dimmable | Non-Isolated | 3 | 20 V, 40 V, 80 V | Board(s) |
Description
General part information
TPS92410 Series
The TPS92410 is an advanced linear driver with high voltage start-up intended for use in low power, offline LED lighting applications. It can be used to regulate the average LED current through LEDs in conjunction with the TPS92411 direct drive switch.
The TPS92410 features a reference voltage that can be used to set the current level as well as the thermal foldback threshold. A multiplier is included to obtain excellent power factor while maintaining good line regulation. Other features include under-voltage lockout, over-voltage protection, forward phase dimmer detection with change to constant current mode, thermal foldback, and thermal shutdown.
The TPS92410 is an advanced linear driver with high voltage start-up intended for use in low power, offline LED lighting applications. It can be used to regulate the average LED current through LEDs in conjunction with the TPS92411 direct drive switch.
