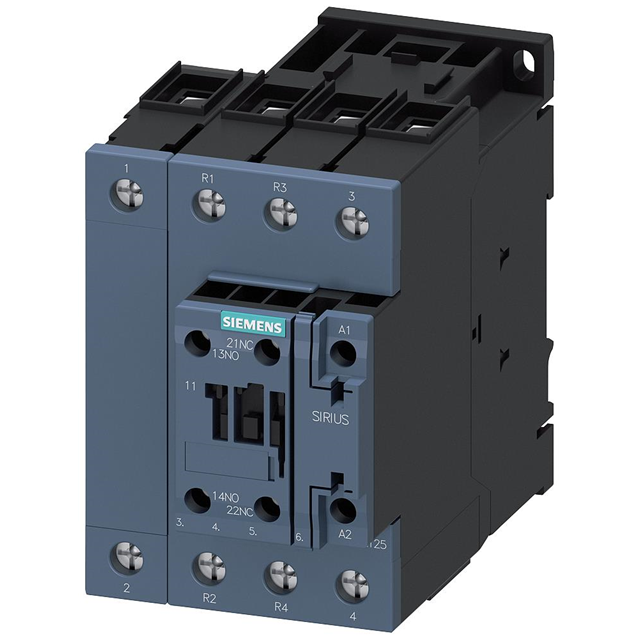

3RT25361NP30
ActiveSiemens
CONTACTOR S2 60A 4POL 175-280VUC
Deep-Dive with AI
Search across all available documentation for this part.
3RT25361NP30
ActiveSiemens
CONTACTOR S2 60A 4POL 175-280VUC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT25361NP30 |
|---|---|
| Coil Power | 110 VA |
| Coil Voltage [Max] | 280 VAC/DC |
| Coil Voltage [Min] | 175 VAC/DC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Rating (Current) | 70 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 100 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 55 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 392.60 | |
Description
General part information
3RT2536 Series
CONTACTOR S2 60A 4POL 175-280VUC
