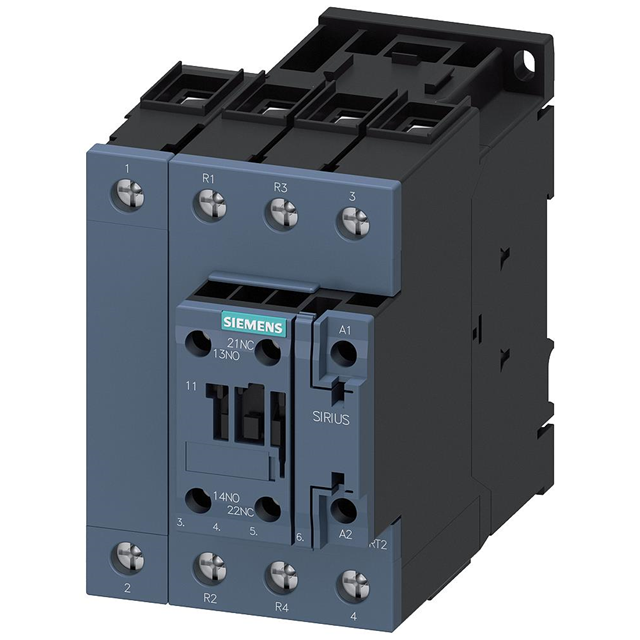

Specification	3RT25361AB00

Coil Power	190 VA
Coil Voltage	24 VDC
Contact Form	B, PST-2NO/2NC, Form, A, 2
Contact Rating (Current)	50 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	19.2 V
Operate Time	80 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Pin Count	4
Release Time	18 ms
Switching Voltage AC (Max)	690 VAC
Termination Style	Screw Terminal

3RT2536 Series

Part	Coil Power	Operate Time	Release Time	Coil Voltage	Mounting Type	Termination Style	Features	Contact Rating (Current)	Must Operate Voltage	Switching Voltage AC (Max)	Pin Count	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Coil Voltage (Max)	Coil Voltage (Type)	Coil Voltage (Min)
Siemens 3RT25361AF00	190 VA	80 ms	18 ms	110 V	Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	70 A	88 V	690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C
Siemens 3RT25361AB00	190 VA	80 ms	18 ms	24 VDC	Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	50 A	19.2 V	690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C
Siemens 3RT25361AP00	190 VA	80 ms	18 ms	230 VDC	Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	70 A	184 VDC	690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C
Siemens 3RT25361AK60	190 VA	80 ms	18 ms	120 V	Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	70 A	96 V	690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C
Siemens 3RT25361AP60	190 VA	80 ms	18 ms	240 V	Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	50 A	192 VDC	690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C
Siemens 3RT25361NB30	110 VA	100 ms	55 ms		Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	70 A		690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C	33 VDC	AC DC	20 VDC
Siemens 3RT25361NP30	110 VA	100 ms	55 ms		Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	70 A		690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C	280 VAC/DC	AC DC	175 VAC/DC
Siemens 3RT25361NF30	110 VA	100 ms	55 ms		Chassis Mount DIN Rail	Screw Terminal	Auxiliary Contacts	50 A		690 VAC	4	2 A B Form PST-2NO/2NC	-40 °C	70 °C	155 VAC/DC	AC DC	83 VAC/DC
