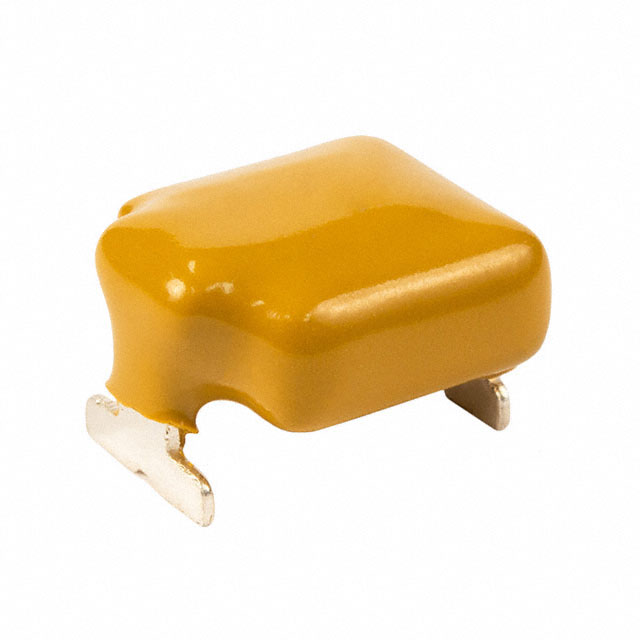

PTVS6-058C-SH

Active

Bourns Inc.

TVS DIODE SINGLE BI-DIR 58V 2-PIN SMD

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE SINGLE BI-DIR 58V 2-PIN SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS6-058C-SH

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	4500 pF
Current - Peak Pulse (10/1000µs)	6000 A
Current - Peak Pulse (10/1000µs)	6 kA
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD
Power Line Protection	False
Supplier Device Package	2-SMD
Type	Zener
Voltage - Breakdown (Min) [Min]	64 V
Voltage - Clamping (Max) @ Ipp	110 V
Voltage - Reverse Standoff (Typ)	58 V

Part	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ) [Max]	Mounting Type	Type	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Package / Case	Package / Case	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Bidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp
Bourns Inc. PTVS6-430C-TH	700 pF	430 V	Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	440 V	Axial	125 ¯C	-55 °C	580 V	General Purpose	1
Bourns Inc. PTVS6-066C-M	4100 pF	66 V	Surface Mount	Zener	6000 A	6 kA	2-SMD Flat Leads		72 V	2-SMD	125 ¯C	-55 °C	120 V	General Purpose	1
Bourns Inc. PTVS6-076C	3300 pF		Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	85 V	Axial	150 °C	-55 °C	140 V	General Purpose	1	76 V
Bourns Inc. PTVS6-380C	650 pF	380 V	Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	401 V	Axial	150 °C	-55 °C		General Purpose	1		520 V
Bourns Inc. PTVS6-430C	700 pF	430 V	Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	440 V	Axial	150 °C	-55 °C	580 V	General Purpose	1
Bourns Inc. PTVS6-058C-SH	4500 pF		Surface Mount	Zener	6000 A	6 kA	2-SMD		64 V	2-SMD	125 ¯C	-55 °C		General Purpose	1	58 V	110 V
Bourns Inc. PTVS6-076C-M	3300 pF		Surface Mount	Zener	6000 A	6 kA	2-SMD Flat Leads		85 V	2-SMD	125 ¯C	-55 °C		General Purpose	1	76 V	135 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 22.65

General part information

110V Clamp 6000A (6kA) (8/20µs) Ipp Tvs Diode Surface Mount 2-SMD
