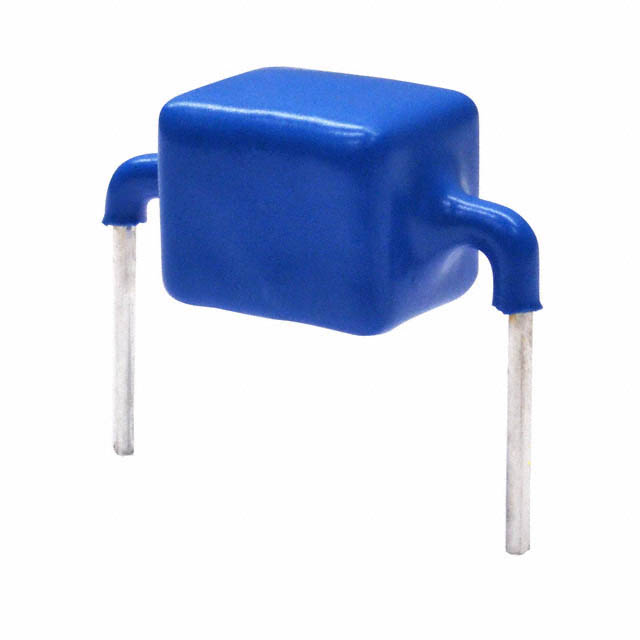

PTVS6-430C

Obsolete

Bourns Inc.

TVS DIODE 430VWM 600VC AXIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TVS DIODE 430VWM 600VC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS6-430C

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	700 pF
Current - Peak Pulse (10/1000µs)	6000 A
Current - Peak Pulse (10/1000µs)	6 kA
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial, Right Angle Bend
Package / Case	24.15 mm
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Voltage - Breakdown (Min) [Min]	440 V
Voltage - Clamping (Max) @ Ipp [Max]	580 V
Voltage - Reverse Standoff (Typ) [Max]	430 V

Part	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ) [Max]	Mounting Type	Type	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Package / Case	Package / Case	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Bidirectional Channels [custom]	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp
Bourns Inc. PTVS6-430C-TH	700 pF	430 V	Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	440 V	Axial	125 ¯C	-55 °C	580 V	General Purpose	1
Bourns Inc. PTVS6-066C-M	4100 pF	66 V	Surface Mount	Zener	6000 A	6 kA	2-SMD Flat Leads		72 V	2-SMD	125 ¯C	-55 °C	120 V	General Purpose	1
Bourns Inc. PTVS6-076C	3300 pF		Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	85 V	Axial	150 °C	-55 °C	140 V	General Purpose	1	76 V
Bourns Inc. PTVS6-380C	650 pF	380 V	Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	401 V	Axial	150 °C	-55 °C		General Purpose	1		520 V
Bourns Inc. PTVS6-430C	700 pF	430 V	Through Hole	Zener	6000 A	6 kA	Axial Right Angle Bend	24.15 mm	440 V	Axial	150 °C	-55 °C	580 V	General Purpose	1
Bourns Inc. PTVS6-058C-SH	4500 pF		Surface Mount	Zener	6000 A	6 kA	2-SMD		64 V	2-SMD	125 ¯C	-55 °C		General Purpose	1	58 V	110 V
Bourns Inc. PTVS6-076C-M	3300 pF		Surface Mount	Zener	6000 A	6 kA	2-SMD Flat Leads		85 V	2-SMD	125 ¯C	-55 °C		General Purpose	1	76 V	135 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

580V (Typ) Clamp 6000A (6kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
