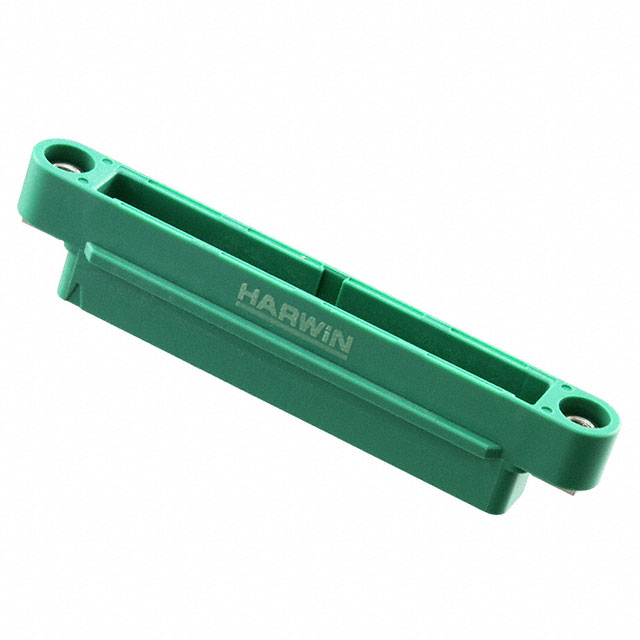

G125-3245096M1

Active

Harwin Inc.

25+25 POS. MALE DIL CABLE HOUSING, SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0 Datasheet +2

G125-3245096M1

Active

Harwin Inc.

25+25 POS. MALE DIL CABLE HOUSING, SCREW-LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125-2040696L0 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-3245096M1

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Features	Threaded Inserts
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

G125-324 Series

Part	Number of Rows	Color	Pitch [x]	Pitch [x]	Contact Termination	Connector Type	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Row Spacing	Row Spacing	Features	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Note	Number of Positions
Harwin Inc. G125-32496M3-02-08-02	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)	4	12	8	1.25 mm	0.049 in	Jackscrews Mating Flange Polarizing Key	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included
Harwin Inc. G125-3241296M2	2	Green	0.049 in	1.25 mm	Crimp	Plug					1.25 mm	0.049 in	Mating Flange Mounting Flange Polarizing Key Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	12
Harwin Inc. G125-3242696M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	26
Harwin Inc. G125-3240696M3	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Jackscrews Mating Flange Polarizing Key	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	6
Harwin Inc. G125-32496M1-02-08-02	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)	4	12	8	1.25 mm	0.049 in	Polarizing Key Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included
Harwin Inc. G125-3243496M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	34
Harwin Inc. G125-3245096M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	50
Harwin Inc. G125-3242096M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	20
Harwin Inc. G125-3242096M2	2	Green	0.049 in	1.25 mm	Crimp	Plug					1.25 mm	0.049 in	Mating Flange Mounting Flange Polarizing Key Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	20
Harwin Inc. G125-3241096M1	2	Green	0.049 in	1.25 mm	Crimp	Plug	Free Hanging (In-Line)				1.25 mm	0.049 in	Threaded Inserts	-65 ░C	150 °C	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Male Pin	Contacts Not Included	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.82
		10	$ 10.48
		30	$ 10.07
		50	$ 9.67
		100	$ 9.13
		250	$ 8.33
		500	$ 7.79
		1000	$ 7.15
Newark	Each	50	$ 10.54
		100	$ 10.27
		250	$ 9.21
		500	$ 8.67
		1000	$ 7.61
		2500	$ 7.24

Description

General part information

G125-324 Series

50 Rectangular Connectors - Housings Plug Green 0.049" (1.25mm)

Documents

Technical documentation and resources

G125-2040696L0

Datasheet

G125 Spec Sheet

Datasheet
