G125-3242096M2
ActiveHarwin Inc.

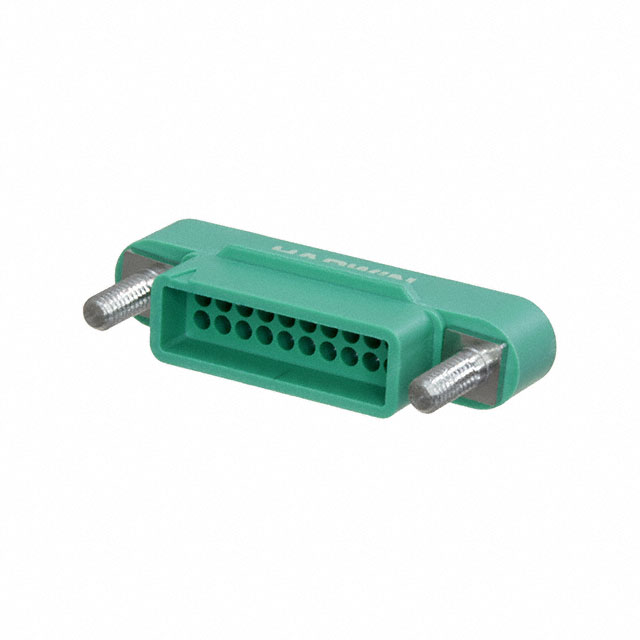

10+10 POS. MALE DIL CABLE HOUSING, SCREW-LOK PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
G125-3242096M2
ActiveHarwin Inc.
10+10 POS. MALE DIL CABLE HOUSING, SCREW-LOK PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-3242096M2 |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Features | Polarizing Key, Mounting Flange, Mating Flange, Threaded Inserts |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.049 in |
| Pitch [x] | 1.25 mm |
| Row Spacing | 1.25 mm |
| Row Spacing | 0.049 in |
G125-324 Series
| Part | Number of Rows | Color | Pitch [x] | Pitch [x] | Contact Termination | Connector Type | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Row Spacing | Row Spacing | Features | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Type | Note | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 4 | 12 | 8 | 1.25 mm | 0.049 in | Jackscrews Mating Flange Polarizing Key | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | |
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | 1.25 mm | 0.049 in | Mating Flange Mounting Flange Polarizing Key Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 12 | ||||
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 1.25 mm | 0.049 in | Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 26 | |||
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 1.25 mm | 0.049 in | Jackscrews Mating Flange Polarizing Key | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 6 | |||
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 4 | 12 | 8 | 1.25 mm | 0.049 in | Polarizing Key Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | |
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 1.25 mm | 0.049 in | Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 34 | |||
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 1.25 mm | 0.049 in | Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 50 | |||
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 1.25 mm | 0.049 in | Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 20 | |||
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | 1.25 mm | 0.049 in | Mating Flange Mounting Flange Polarizing Key Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 20 | ||||
Harwin Inc. | 2 | Green | 0.049 in | 1.25 mm | Crimp | Plug | Free Hanging (In-Line) | 1.25 mm | 0.049 in | Threaded Inserts | -65 ░C | 150 °C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Male Pin | Contacts Not Included | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-324 Series
20 Rectangular Connectors - Housings Plug Green 0.049" (1.25mm)
