EXN-23356-SV

Active

BUD INDUSTRIES

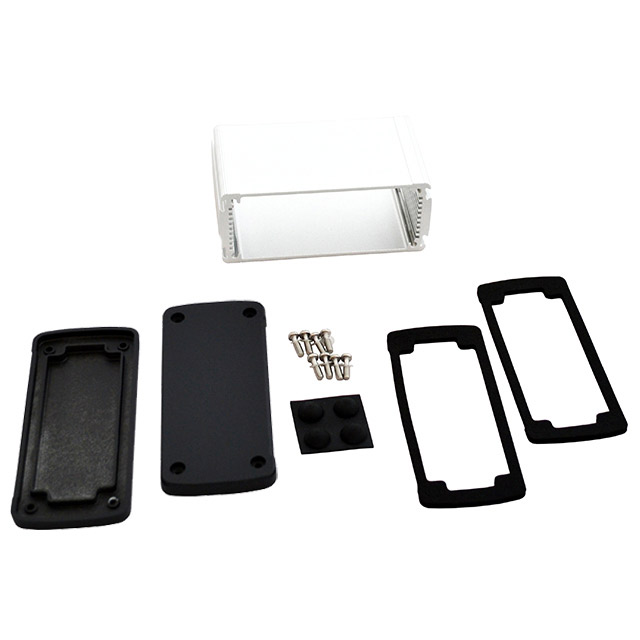

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 69 MM, 115.1 MM, IP66

Search across all available documentation for this part.

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 69 MM, 115.1 MM, IP66

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Box Metal, Aluminum Black, Silver End Panel(s) 4.531" L x 2.717" W (115.10mm x 69.00mm) X 2.031" (51.60mm)

Technical documentation and resources

Specification	EXN-23356-SV	EXN-23356 Series

Area (L x W)	79 cm˛	79 cm˛
Area (L x W)	12.3 in˛	12.3 in˛
Color	Black, Silver	Black, Silver
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Features	Card Guides, Sealing Gaskets	Card Guides, Sealing Gaskets
Height [z]	51.6 mm	51.6 mm
Height [z]	2.031 in	2.031 in
Material	Metal, Aluminum	Metal, Polycarbonate Panels, Aluminum with Plastic, Aluminum
Material Flammability Rating	-	UL94 V-0
Ratings	IP66	IP66
Size / Dimension [x]	115.1 mm	115.1 mm
Size / Dimension [x]	4.531 in	4.531 in
Size / Dimension [y]	69 mm	69 mm
Size / Dimension [y]	2.717 "	2.717 "
Thickness	0.091 in	0.091 in
Thickness	2.3 mm	2.3 mm
Weight	0.56 lb	0.56 lb
Weight	254.01 g	254.01 g

Part	Ratings	Material	Height [z]	Height [z]	Design	Area (L x W)	Area (L x W)	Thickness	Thickness	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Features	Color	Weight	Weight
BUD INDUSTRIES EXN-23356-BLP	IP66	Aluminum with Plastic, Metal, Polycarbonate Panels	51.6 mm	2.031 in	End Panel(s)	79 cm˛	12.3 in˛	0.091 in	2.3 mm	Box	115.1 mm	69 mm	4.531 in	2.717 "	UL94 V-0	Card Guides, Sealing Gaskets
BUD INDUSTRIES EXN-23356-SV	IP66	Aluminum, Metal	51.6 mm	2.031 in	End Panel(s)	79 cm˛	12.3 in˛	0.091 in	2.3 mm	Box	115.1 mm	69 mm	4.531 in	2.717 "		Card Guides, Sealing Gaskets	Black, Silver	0.56 lb	254.01 g
