EXN-23356-BLP

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 51.6 MM, 69 MM, 115.1 MM, IP66

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

EXN-23356-BLP

Active

BUD INDUSTRIES

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 51.6 MM, 69 MM, 115.1 MM, IP66

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXN-23356-BLP	EXN-23356 Series

Area (L x W)	79 cm˛	79 cm˛
Area (L x W)	12.3 in˛	12.3 in˛
Color	-	Black, Silver
Container Type	Box	Box
Design	End Panel(s)	End Panel(s)
Features	Card Guides, Sealing Gaskets	Card Guides, Sealing Gaskets
Height [z]	51.6 mm	51.6 mm
Height [z]	2.031 in	2.031 in
Material	Metal, Polycarbonate Panels, Aluminum with Plastic	Metal, Polycarbonate Panels, Aluminum with Plastic, Aluminum
Material Flammability Rating	UL94 V-0	UL94 V-0
Ratings	IP66	IP66
Size / Dimension [x]	115.1 mm	115.1 mm
Size / Dimension [x]	4.531 in	4.531 in
Size / Dimension [y]	69 mm	69 mm
Size / Dimension [y]	2.717 "	2.717 "
Thickness	0.091 in	0.091 in
Thickness	2.3 mm	2.3 mm
Weight	-	0.56 lb
Weight	-	254.01 g

EXN-23356 Series

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 51.6 MM, 69 MM, 115.1 MM, IP66

Part	Ratings	Material	Height [z]	Height [z]	Design	Area (L x W)	Area (L x W)	Thickness	Thickness	Container Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Features	Color	Weight	Weight
BUD INDUSTRIES EXN-23356-BLP	IP66	Aluminum with Plastic, Metal, Polycarbonate Panels	51.6 mm	2.031 in	End Panel(s)	79 cm˛	12.3 in˛	0.091 in	2.3 mm	Box	115.1 mm	69 mm	4.531 in	2.717 "	UL94 V-0	Card Guides, Sealing Gaskets
BUD INDUSTRIES EXN-23356-SV	IP66	Aluminum, Metal	51.6 mm	2.031 in	End Panel(s)	79 cm˛	12.3 in˛	0.091 in	2.3 mm	Box	115.1 mm	69 mm	4.531 in	2.717 "		Card Guides, Sealing Gaskets	Black, Silver	0.56 lb	254.01 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EXN-23356 Series

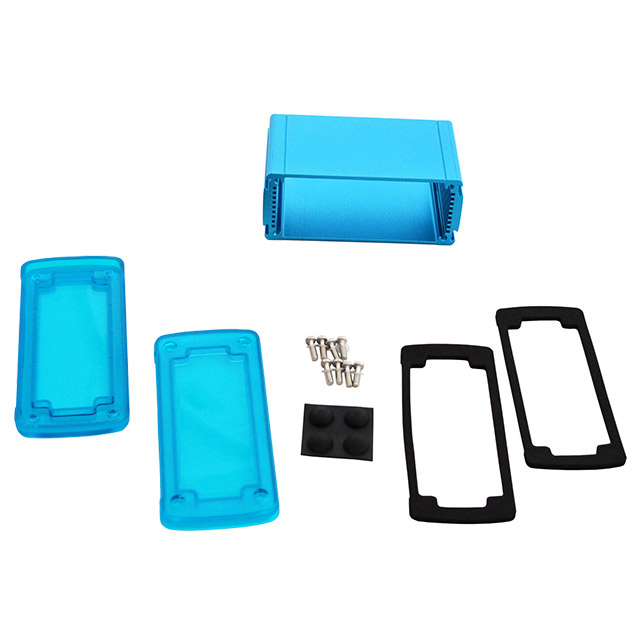

Box Metal, Aluminum with Plastic, Polycarbonate Panels Blue, Translucent Blue End Panel(s) 4.531" L x 2.717" W (115.10mm x 69.00mm) X 2.031" (51.60mm)
