09120062695

Active

HARTING Technology Group

HAN BRID-WANDD.+ CU-B STI-C(G) LP-KLEMME ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN BRID-WANDD.+ CU-B STI-C(G) LP-KLEMME ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09120062695

Color	Gray
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4, 2
Number of Positions	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Push In
Voltage Rating	25 V

Part	Color	Number of Positions	Number of Positions	Material Flammability Rating	Voltage Rating	Gender	Current Rating (Amps)	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Size	Contact Finish	Contact Material	Contents	Style
HARTING Technology Group 09120062611	Gray	2 4	Ground	UL94 V-0	50 V	Male	10 A	Polycarbonate (PC)	125 °C	-40 °C	Crimp	3 A
HARTING Technology Group 09120062765	Gray		4+Ground	UL94 V-0		Female		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062791		2 4	Ground								Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING Technology Group 09120062691		2 4	Ground								Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING Technology Group 09120062762	Gray	2 4	Ground	UL94 V-0		Female		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062695	Gray	2 4	Ground	UL94 V-0	25 V	Male	10 A	Polycarbonate (PC)	125 °C	-40 °C	Push In
HARTING Technology Group 09120062694	Gray	2 4	Ground	UL94 V-0	25 V	Male	10 A	Polycarbonate (PC)	125 °C	-40 °C	Screw	3 A
HARTING Technology Group 09120062665	Gray		4+Ground	UL94 V-0		Male		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062662	Gray	2 4	Ground	UL94 V-0		Male		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062666	Gray	2 4	Ground	UL94 V-0		Male		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

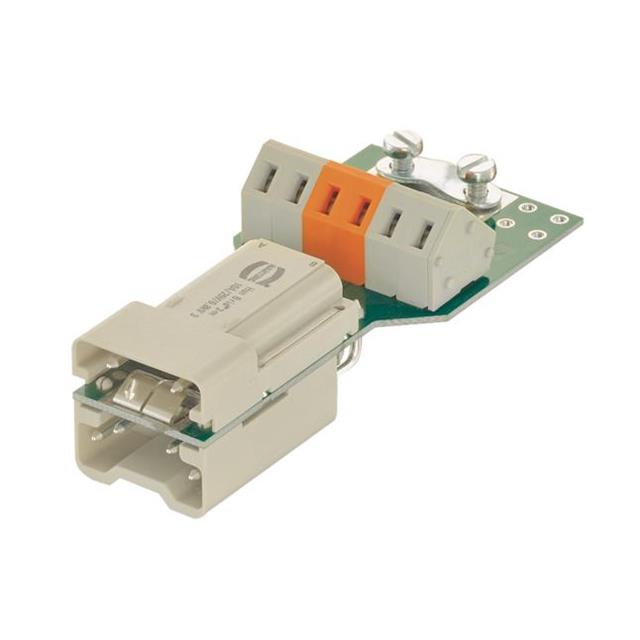

Male Insert Gray 4+2+Ground Position Push In
