09120062666

Active

HARTING Technology Group

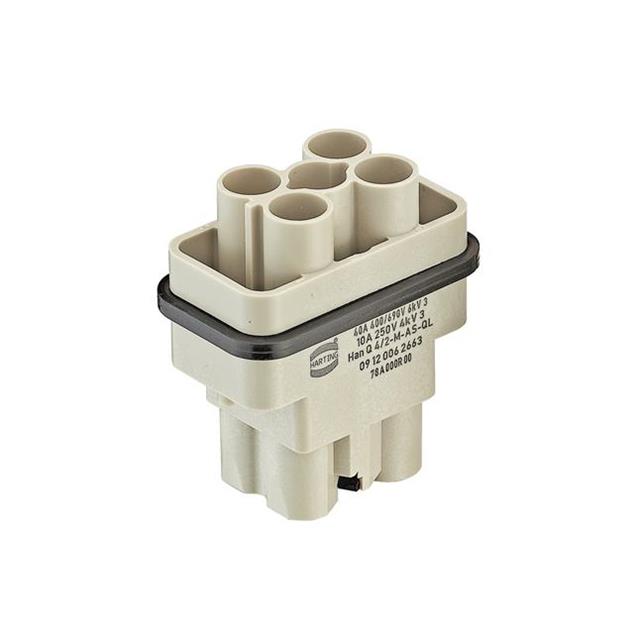

HAN Q 4/2 MALE AXIAL SCREW INSERT, W/O QL SIGNAL CONTACTS, (40AMP - 12-8AWG)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN Q 4/2 MALE AXIAL SCREW INSERT, W/O QL SIGNAL CONTACTS, (40AMP - 12-8AWG)

Technical Specifications

Parameters and characteristics for this part

Specification	09120062666

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	4, 2
Number of Positions	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Screw

Part	Color	Number of Positions	Number of Positions	Material Flammability Rating	Voltage Rating	Gender	Current Rating (Amps)	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Size	Contact Finish	Contact Material	Contents	Style
HARTING Technology Group 09120062611	Gray	2 4	Ground	UL94 V-0	50 V	Male	10 A	Polycarbonate (PC)	125 °C	-40 °C	Crimp	3 A
HARTING Technology Group 09120062765	Gray		4+Ground	UL94 V-0		Female		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062791		2 4	Ground								Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING Technology Group 09120062691		2 4	Ground								Crimp	3 A			Cable Connector Assembly	Top Entry
HARTING Technology Group 09120062762	Gray	2 4	Ground	UL94 V-0		Female		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062695	Gray	2 4	Ground	UL94 V-0	25 V	Male	10 A	Polycarbonate (PC)	125 °C	-40 °C	Push In
HARTING Technology Group 09120062694	Gray	2 4	Ground	UL94 V-0	25 V	Male	10 A	Polycarbonate (PC)	125 °C	-40 °C	Screw	3 A
HARTING Technology Group 09120062665	Gray		4+Ground	UL94 V-0		Male		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062662	Gray	2 4	Ground	UL94 V-0		Male		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy
HARTING Technology Group 09120062666	Gray	2 4	Ground	UL94 V-0		Male		Polycarbonate (PC)	125 °C	-40 °C	Screw		Silver	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 4+2+Ground Position Screw
