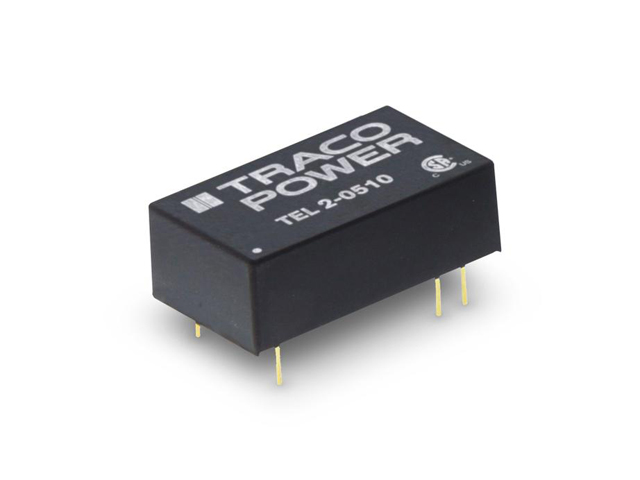

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEL 2-0522

Traco Power

DC DC CONVERTER +/-12V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TEL 2-0522	TEL 2 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	85 mA	65 - 85 mA
Current - Output (Max)	85 mA	65 - 165 mA
Current - Output (Max)	-	400 - 500 mA
Efficiency	69 %	69 - 78 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-DIP Module	16-DIP Module
Package / Case	6 Leads	6 Leads
Power (Watts)	2 W	1.7 - 2 W
Size / Dimension [x]	23.8 mm	23.8 mm
Size / Dimension [x]	0.94 in	0.94 in
Size / Dimension [y]	0.54 "	0.54 "
Size / Dimension [y]	13.7 mm	13.7 mm
Size / Dimension [z]	0.31 in	0.31 in
Size / Dimension [z]	8 mm	8 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	9 V	9 - 75 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	12 V	3.3 - 15 V
Voltage - Output 2	-12 V	-15 - -5 V

TEL 2 Series

DC DC CONVERTER +/-12V 2W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Package / Case	Package / Case	Efficiency	Features	Applications	Mounting Type	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Current - Output (Max) [Max]
Traco Power TEL 2-0522	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	12 V	-12 V	85 mA	85 mA	16-DIP Module	6 Leads	69 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-4810	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	3.3 V				16-DIP Module	6 Leads	71 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	1.7 W	500 mA
Traco Power TEL 2-1223	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	18 V	Isolated Module	9 V	15 V	-15 V	65 mA	65 mA	16-DIP Module	6 Leads	78 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-0511	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	5 V				16-DIP Module	6 Leads	73 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	2 W	400 mA
Traco Power TEL 2-0512	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	12 V			165 mA	16-DIP Module	6 Leads	75 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-0510	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	3.3 V				16-DIP Module	6 Leads	70 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	1.7 W	500 mA
Traco Power TEL 2-4811	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	5 V				16-DIP Module	6 Leads	73 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	2 W	400 mA
Traco Power TEL 2-4821	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	5 V	-5 V			16-DIP Module	6 Leads	71 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-1210	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	18 V	Isolated Module	9 V	3.3 V				16-DIP Module	6 Leads	73 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	1.7 W	500 mA
Traco Power TEL 2-4823	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	15 V	-15 V	65 mA	65 mA	16-DIP Module	6 Leads	77 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.70
		10	$ 9.76

Description

General part information

TEL 2 Series

Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 4.5V - 9V Input
