TEL 2-0510

Traco Power

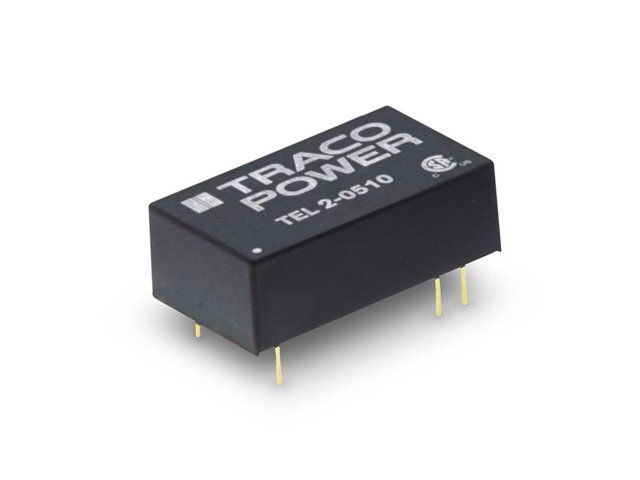

DC DC CONVERTER 3.3V 1.7W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TEL 2-0510

Traco Power

DC DC CONVERTER 3.3V 1.7W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 12.80

Description

General part information

TEL 2 Series

Isolated Module DC DC Converter 1 Output 3.3V 500mA 4.5V - 9V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TEL 2-0510	TEL 2 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	65 - 85 mA
Current - Output (Max)	-	65 - 165 mA
Current - Output (Max) [Max]	500 mA	400 - 500 mA
Efficiency	70 %	69 - 78 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-DIP Module	16-DIP Module
Package / Case	6 Leads	6 Leads
Power (Watts)	1.7 W	1.7 - 2 W
Size / Dimension [x]	23.8 mm	23.8 mm
Size / Dimension [x]	0.94 in	0.94 in
Size / Dimension [y]	0.54 "	0.54 "
Size / Dimension [y]	13.7 mm	13.7 mm
Size / Dimension [z]	0.31 in	0.31 in
Size / Dimension [z]	8 mm	8 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	9 V	9 - 75 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	3.3 V	3.3 - 15 V
Voltage - Output 2	-	-15 - -5 V

TEL 2 Series

DC DC CONVERTER +/-12V 2W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Package / Case	Package / Case	Efficiency	Features	Applications	Mounting Type	Number of Outputs	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Current - Output (Max) [Max]
Traco Power TEL 2-0522	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	12 V	-12 V	85 mA	85 mA	16-DIP Module	6 Leads	69 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-4810	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	3.3 V				16-DIP Module	6 Leads	71 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	1.7 W	500 mA
Traco Power TEL 2-1223	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	18 V	Isolated Module	9 V	15 V	-15 V	65 mA	65 mA	16-DIP Module	6 Leads	78 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-0511	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	5 V				16-DIP Module	6 Leads	73 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	2 W	400 mA
Traco Power TEL 2-0512	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	12 V			165 mA	16-DIP Module	6 Leads	75 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-0510	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	9 V	Isolated Module	4.5 V	3.3 V				16-DIP Module	6 Leads	70 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	1.7 W	500 mA
Traco Power TEL 2-4811	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	5 V				16-DIP Module	6 Leads	73 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	2 W	400 mA
Traco Power TEL 2-4821	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	5 V	-5 V			16-DIP Module	6 Leads	71 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W
Traco Power TEL 2-1210	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	18 V	Isolated Module	9 V	3.3 V				16-DIP Module	6 Leads	73 %	SCP	ITE (Commercial)	Through Hole	1	1.5 kV	-40 °C	75 ░C	1.7 W	500 mA
Traco Power TEL 2-4823	23.8 mm	0.54 "	0.31 in	0.94 in	8 mm	13.7 mm	75 V	Isolated Module	36 V	15 V	-15 V	65 mA	65 mA	16-DIP Module	6 Leads	77 %	SCP	ITE (Commercial)	Through Hole	2	1.5 kV	-40 °C	75 ░C	2 W
