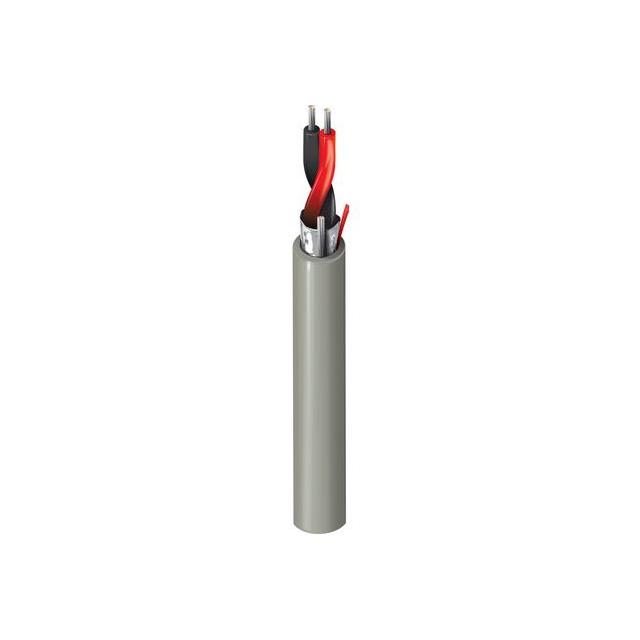

Specification	9501 06010000

Cable Type	Conductor, Multi
Conductor Arrangement	Twisted
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	32 AWG
Features	Drain Wire
Jacket (Insulation) Diameter	0.156 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Chrome
Length	10000 ft
Number of Conductors	2
Number of Conductors - Pair	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Ratings	UL, 2464, Style
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

9501 Series

Part	Jacket Color	Conductor Strand Gauge	Conductor Strand Count	Jacket (Insulation) Diameter	Shield Type	Conductor Insulation	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Features	Conductor Material	Cable Type	Ratings	Jacket (Insulation) Material	Wire Gauge	Operating Temperature (Min)	Operating Temperature (Max)	Length	Voltage	Jacket (Insulation) Thickness	Usage	Shield Material	Shield Coverage
Belden Inc. 9501 06010000	Chrome	32 AWG	7 Strands	0.156 in	Foil	Poly-Vinyl Chloride (PVC)	2	Twisted	1	Drain Wire	Copper Tinned	Conductor Multi	2464 Style UL	Poly-Vinyl Chloride (PVC)	24 AWG	-30 °C	80 °C	10000 ft	300 V	0.032 in	Computer	Aluminum	100 %
Belden Inc. 9501 0605000	Chrome	32 AWG	7 Strands	0.156 in	Foil	Poly-Vinyl Chloride (PVC)	2	Twisted	1	Drain Wire	Copper Tinned	Conductor Multi	2464 Style UL	Poly-Vinyl Chloride (PVC)	24 AWG	-30 °C	80 °C	5000 ft	300 V	0.032 in	Computer	Aluminum	100 %
Belden Inc. 9501 060100	Chrome	32 AWG	7 Strands	0.156 in	Foil	Poly-Vinyl Chloride (PVC)	2	Twisted	1	Drain Wire	Copper Tinned	Conductor Multi		Poly-Vinyl Chloride (PVC)	24 AWG	-30 °C	80 °C	100 ft		0.032 in	Computer	Aluminum	100 %
Belden Inc. 9501 060500	Chrome	32 AWG	7 Strands	0.156 in	Foil	Poly-Vinyl Chloride (PVC)	2	Twisted	1	Drain Wire	Copper Tinned	Conductor Multi		Poly-Vinyl Chloride (PVC)	24 AWG	-30 °C	80 °C	500 ft		0.032 in	Computer	Aluminum	100 %
Belden Inc. 9501 0601000	Chrome	32 AWG	7 Strands	0.156 in	Foil	Poly-Vinyl Chloride (PVC)	2	Twisted	1	Drain Wire	Copper Tinned	Conductor Multi	2464 Style UL	Poly-Vinyl Chloride (PVC)	24 AWG	-30 °C	80 °C	1000 ft	300 V	0.032 in	Computer	Aluminum	100 %
