9501 060500

Active

Belden Inc.

CABLE 2CON 24AWG CHROM SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2CON 24AWG CHROM SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9501 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.156 in
Jacket (Insulation) Diameter [diameter]	3.96 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Jacket Color	Jacket (Insulation) Material	Voltage	Conductor Material	Usage	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Conductor Insulation	Shield Coverage	Number of Conductors	Wire Gauge	Length	Length [x]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length
Belden Inc. 9501 06010000	Chrome	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	Computer	Drain Wire	0.156 in	3.96 mm	Aluminum	Foil	-30 ░C	80 C	UL Style 2464	Poly-Vinyl Chloride (PVC)	100 %	2	24 AWG	3048 m	10000 ft	Multi-Conductor	32 AWG	7
Belden Inc. 9501 060100	Chrome	Poly-Vinyl Chloride (PVC)		Copper Tinned	Computer	Drain Wire	0.156 in	3.96 mm	Aluminum	Foil	-30 ░C	80 C		Poly-Vinyl Chloride (PVC)	100 %	2	24 AWG		100 ft	Multi-Conductor	32 AWG	7	30.5 m
Belden Inc. 9501 060500	Chrome	Poly-Vinyl Chloride (PVC)		Copper Tinned	Computer	Drain Wire	0.156 in	3.96 mm	Aluminum	Foil	-30 ░C	80 C		Poly-Vinyl Chloride (PVC)	100 %	2	24 AWG		500 '	Multi-Conductor	32 AWG	7	152.4 m
Belden Inc. 9501 0601000	Chrome	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	Computer	Drain Wire	0.156 in	3.96 mm	Aluminum	Foil	-30 ░C	80 C	UL Style 2464	Poly-Vinyl Chloride (PVC)	100 %	2	24 AWG	304.8 m		Multi-Conductor	32 AWG	7		1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

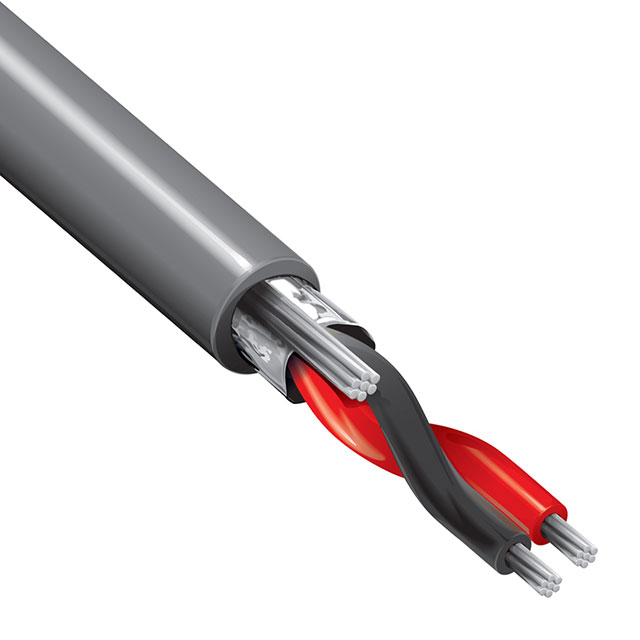

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 24 AWG Foil 500.0' (152.4m)
