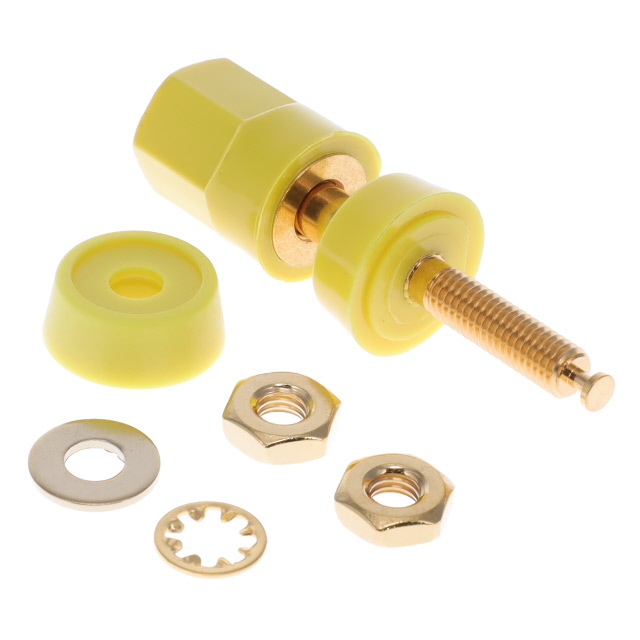

5018-4

Active

Pomona Electronics

BINDING POST, 5018 SERIES, 30 A, 1.5 KV, GOLD PLATED CONTACTS, PANEL MOUNT, YELLOW

Find alt

Alpha

5018-4

Active

Pomona Electronics

BINDING POST, 5018 SERIES, 30 A, 1.5 KV, GOLD PLATED CONTACTS, PANEL MOUNT, YELLOW

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

5018 Series

The 5018 series Hex Head Binding Post meets requirements of MIL-P-55149/1A. It is made of gold-plated brass body with nylon MIL-P-20693 insulator and a brass flat washer.

Technical Specifications

Parameters and characteristics for this part

Specification	5018-4

Color	Yellow
Cross Hole Diameter	0.1 in
Current Rating	30 A
Head Size (OD)	0.48 in
Head Style	Hex
Material - Body	Brass
Material - Insulation	Polyamide, PA, Nylon
Nut Material	Steel
Plating - Body	Gold
Termination	Threaded and Turret
Type	Standard
Voltage Rating	30VAC, 60VDC
Voltage Rating (AC)	30 VAC
Voltage Rating (DC)	60 VDC

5018 Series

Part	Nut Material	Voltage Rating	Voltage Rating (AC)	Voltage Rating (DC)	Cross Hole Diameter	Material - Insulation	Head Size (OD)	Current Rating	Termination	Head Style	Type	Material - Body	Color	Plating - Body
Pomona Electronics 5018-0	Steel	30VAC 60VDC	30 VAC	60 VDC	0.1 in	Nylon PA Polyamide	0.48 in	30 A	Threaded and Turret	Hex	Standard	Brass	Black	Gold
Pomona Electronics 5018-6	Steel	30VAC 60VDC	30 VAC	60 VDC	0.1 in	Nylon PA Polyamide	0.48 in	30 A	Threaded and Turret	Hex	Standard	Brass	Blue	Gold
Pomona Electronics 5018-9	Steel	30VAC 60VDC	30 VAC	60 VDC	0.1 in	Nylon PA Polyamide	0.48 in	30 A	Threaded and Turret	Hex	Standard	Brass	White	Gold
Pomona Electronics 5018-4	Steel	30VAC 60VDC	30 VAC	60 VDC	0.1 in	Nylon PA Polyamide	0.48 in	30 A	Threaded and Turret	Hex	Standard	Brass	Yellow	Gold
Pomona Electronics 5018-5	Steel	30VAC 60VDC	30 VAC	60 VDC	0.1 in	Nylon PA Polyamide	0.48 in	30 A	Threaded and Turret	Hex	Standard	Brass	Green	Gold
Pomona Electronics 5018-2	Steel	30VAC 60VDC	30 VAC	60 VDC	0.1 in	Nylon PA Polyamide	0.48 in	30 A	Threaded and Turret	Hex	Standard	Brass	Red	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
