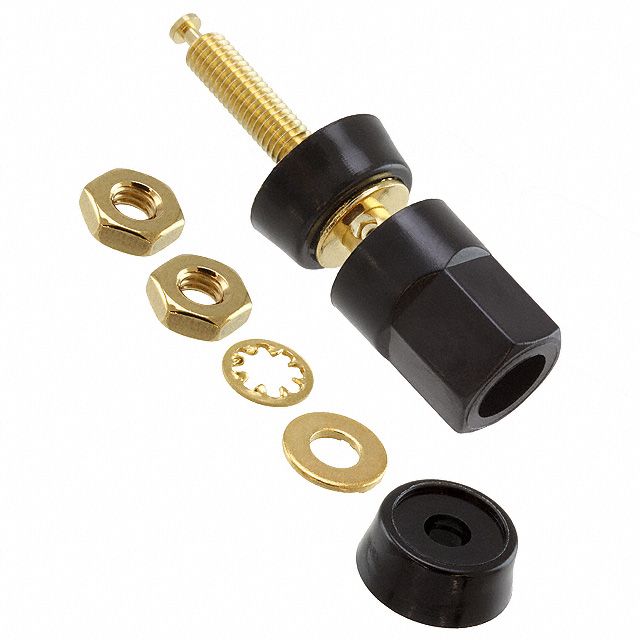

5018-0

Active

Pomona Electronics

CONN BINDING POST 1 POS ST PANEL MOUNT 1 PORT

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BINDING POST 1 POS ST PANEL MOUNT 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	5018-0

Color	Black
Cross Hole Diameter [diameter]	0.1 in
Cross Hole Diameter [diameter]	2.54 mm
Current Rating (Amps)	30 A
Head Size [diameter]	0.48 in
Head Size [diameter]	12.19 mm
Head Style	Hex
Material - Body	Brass
Material - Insulation	Nylon, Polyamide (PA)
Nut Material	Steel
Plating - Body [custom]	Gold
Termination	Turret, Threaded
Type	Standard
Voltage Rating	30 VAC, 60 VDC

Part	Material - Insulation	Color	Head Size [diameter]	Head Size [diameter]	Termination	Current Rating (Amps)	Nut Material	Plating - Body [custom]	Head Style	Voltage Rating	Material - Body	Cross Hole Diameter [diameter]	Cross Hole Diameter [diameter]	Type
Pomona Electronics 5018-0	Nylon Polyamide (PA)	Black	0.48 in	12.19 mm	Threaded Turret	30 A	Steel	Gold	Hex	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	Standard
Pomona Electronics 5018-6	Nylon Polyamide (PA)	Blue	0.48 in	12.19 mm	Threaded Turret	30 A	Steel	Gold	Hex	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	Standard
Pomona Electronics 5018-4	Nylon Polyamide (PA)	Yellow	0.48 in	12.19 mm	Threaded Turret	30 A	Steel	Gold	Hex	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	Standard
Pomona Electronics 5018-5	Nylon Polyamide (PA)	Green	0.48 in	12.19 mm	Threaded Turret	30 A	Steel	Gold	Hex	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	Standard
Pomona Electronics 5018-2	Nylon Polyamide (PA)	Red	0.48 in	12.19 mm	Threaded Turret	30 A	Steel	Gold	Hex	30 VAC 60 VDC	Brass	0.1 in	2.54 mm	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Binding Post Connector Standard Hex Black Gold
