BU-1010-A-36-0

Active

MUELLER ELECTRIC

TEST LEAD, HOOK CLIP TO HOOK CLIP, BLACK, 300 V, 5 A, 914.4 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

BU-1010-A-36-0

Active

MUELLER ELECTRIC

TEST LEAD, HOOK CLIP TO HOOK CLIP, BLACK, 300 V, 5 A, 914.4 MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.60
Newark	Each	50	$ 14.28
		100	$ 13.85

Description

General part information

BU-1010 Series

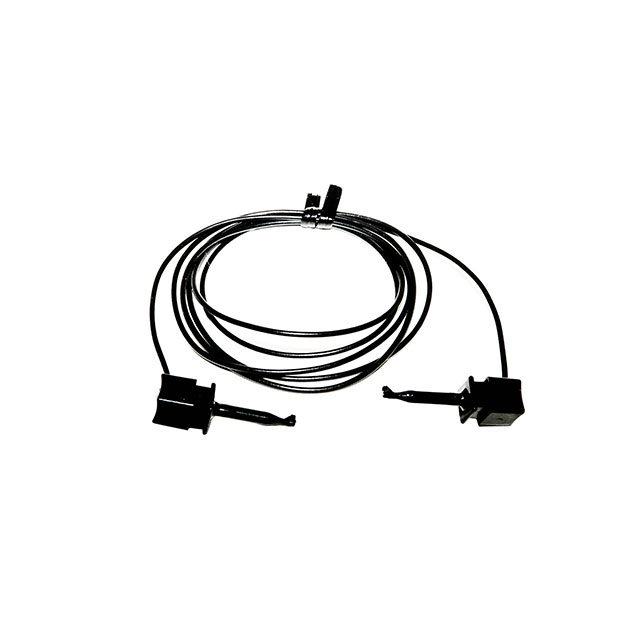

The BU-1010-A-36-0 is a Test Lead with micro-plunger clip on both ends. It accepts 20AWG tinned copper with 105°C PVC insulated hook-up wire. The plunger has nylon housing, stainless steel spring and beryllium copper contact.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	BU-1010-A-36-0	BU-1010 Series

2nd Connector	Micro Hook	Micro Hook
Cable Length	36 in	5 - 48 in
Cable Length	914.4 mm	304.8 - 1524 mm
Configuration	Hook to Grabber, Hook, Grabber	Hook to Grabber, Hook, Grabber
Contents	1 Lead, Black	Red, 1 Lead, Black
Contents	-	1
Current Rating (Amps)	5 A	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Temperature Range	105 °C	105 °C
Temperature Range	221 °F	221 °F
Voltage - Rated	300 V	300 V
Wire Gauge	20 AWG	20 AWG

Part	Wire Gauge	Contents [custom]	Contents	Current Rating (Amps)	2nd Connector	Temperature Range	Temperature Range	Cable Length	Cable Length	Voltage - Rated	Material - Insulation	Configuration
MUELLER ELECTRIC BU-1010-A-12-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	12 in	304.8 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-60-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	5 ft	1524 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-36-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	36 in	914.4 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-24-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	24 "	609.6 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-48-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	48 in	1219.2 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-36-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	36 in	914.4 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-12-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	12 in	304.8 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-24-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	24 "	609.6 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-48-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	48 in	1219.2 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
