BU-1010-A-60-2

Active

MUELLER ELECTRIC

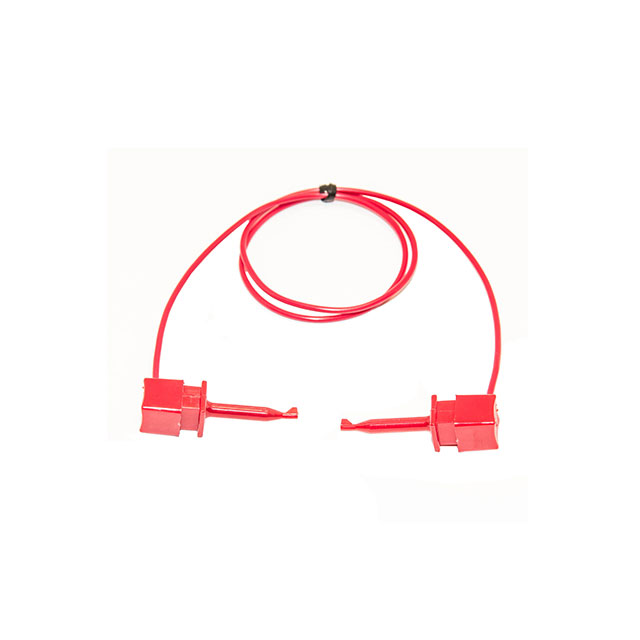

RED MICRO-PLUNGER CLIP ON BOTH ENDS, 60" 20G PVC

Search across all available documentation for this part.

Active

MUELLER ELECTRIC

RED MICRO-PLUNGER CLIP ON BOTH ENDS, 60" 20G PVC

Technical Specifications

Parameters and characteristics commom to parts in this series

RED MICRO-PLUNGER CLIP ON BOTH ENDS, 12" 20G PVC

Part	Wire Gauge	Contents [custom]	Contents	Current Rating (Amps)	2nd Connector	Temperature Range	Temperature Range	Cable Length	Cable Length	Voltage - Rated	Material - Insulation	Configuration
MUELLER ELECTRIC BU-1010-A-12-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	12 in	304.8 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-60-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	5 ft	1524 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-36-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	36 in	914.4 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-24-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	24 "	609.6 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-48-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	48 in	1219.2 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-36-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	36 in	914.4 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-12-0	20 AWG		1 Lead, Black	5 A	Micro Hook	105 °C	221 °F	12 in	304.8 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-24-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	24 "	609.6 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber
MUELLER ELECTRIC BU-1010-A-48-2	20 AWG	1	Red	5 A	Micro Hook	105 °C	221 °F	48 in	1219.2 mm	300 V	Poly-Vinyl Chloride (PVC)	Grabber, Hook, Hook to Grabber

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60.0" (1524.00mm) Micro Hook To Micro Hook Test Lead 300V 1 Lead, Red
