SJS830220

Active

AMPHENOL PCD

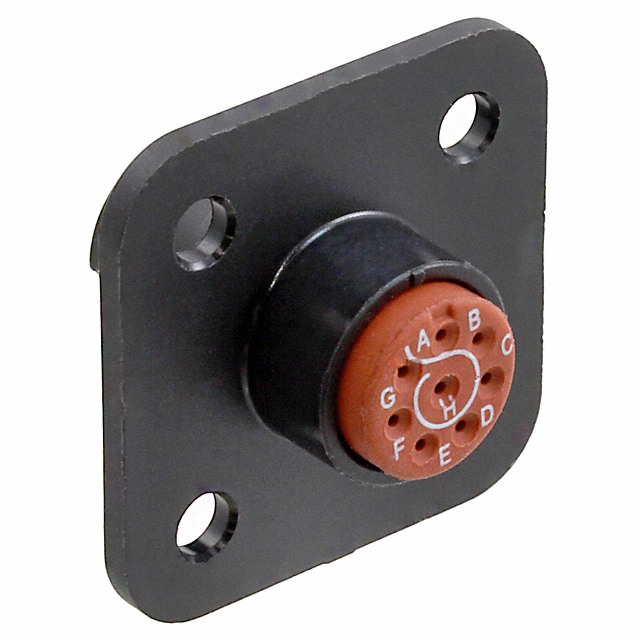

CONN RCPT HSNG MALE 8POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

SJS830220

Active

AMPHENOL PCD

CONN RCPT HSNG MALE 8POS PNL MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.90
		10	$ 27.93
		100	$ 25.00

Description

General part information

SJS83 Series

8 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJS830220	SJS83 Series

Connector Type	Receptacle Housing	Receptacle Housing, Receptacle, Male Pins, Plug Housing, Female Sockets, Plug
Contact Finish - Mating	-	Gold
Contact Shape	Circular	Circular
Contact Size	22D	22D
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Dust Cap, Coupling Nut
Housing Color	Black	Black, Green, Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof, Environment Sealed
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	2 - 8
Operating Temperature [Max]	125 °C	125 - 155 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	A	A, B, C
Primary Material	-	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	7	5 - 8
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Type	For Male Pins	For Male Pins, For Female Sockets

SJS83 Series

CONN RCPT HSNG MALE 8POS PNL MNT

Part	Connector Type	Shielding	Orientation	Number of Positions	Fastening Type	Housing Color	Ingress Protection	Note	Type	Contact Type	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Contact Size	Mounting Feature	Contact Shape	Material Flammability Rating	Shell Material	Mounting Type	Features	Primary Material	Contact Finish - Mating	Termination	Current Rating (Amps)
AMPHENOL PCD SJS830220	Receptacle Housing	Unshielded	A	8	Bayonet Lock	Black	IP67 - Dust Tight, Waterproof	Contacts Not Included	For Male Pins	Crimp	7	125 °C	-65 ░C	22D	Flange	Circular	UL94 V-0	Polyamide (PA66), Nylon 6/6
AMPHENOL PCD SJS830270	Receptacle Housing	Unshielded		2	Bayonet Lock	Black	IP67 - Dust Tight, Waterproof	Contacts Not Included	For Male Pins	Crimp	5	125 °C	-65 ░C	22D		Circular	UL94 V-0	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)
AMPHENOL PCD SJS830401	Male Pins, Receptacle			4	Bayonet Lock		Environment Sealed				8	155 °C	-65 ░C					Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	Dust Cap	Plastic	Gold	Crimp
AMPHENOL PCD SJS830221	Receptacle Housing	Unshielded	B	8	Bayonet Lock	Green	IP67 - Dust Tight, Waterproof	Contacts Not Included	For Male Pins	Crimp	7	125 °C	-65 ░C	22D	Flange	Circular	UL94 V-0	Polyamide (PA66), Nylon 6/6
AMPHENOL PCD SJS830101	Plug Housing	Unshielded	B	8	Bayonet Lock	Green	IP67 - Dust Tight, Waterproof	Contacts Not Included	For Female Sockets	Crimp	7	125 °C	-65 ░C	22D		Circular	UL94 V-0	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	Coupling Nut
AMPHENOL PCD SJS830222	Receptacle Housing	Unshielded	C	8	Bayonet Lock	Yellow	IP67 - Dust Tight, Waterproof	Contacts Not Included	For Male Pins	Crimp	7	125 °C	-65 ░C	22D	Flange	Circular	UL94 V-0	Polyamide (PA66), Nylon 6/6
AMPHENOL PCD SJS830231	Male Pins, Receptacle				Bayonet Lock		Environment Sealed				5	125 °C	-65 ░C					Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)		Plastic	Gold	Crimp
AMPHENOL PCD SJS830311	Female Sockets, Plug				Bayonet Lock		Environment Sealed				8	125 °C	-65 ░C					Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	Dust Cap	Plastic	Gold	Crimp
AMPHENOL PCD SJS830100	Plug Housing	Unshielded	A	8	Bayonet Lock	Black	IP67 - Dust Tight, Waterproof	Contacts Not Included	For Female Sockets	Crimp	7	125 °C	-65 ░C	22D		Circular	UL94 V-0	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	Coupling Nut
AMPHENOL PCD SJS830251	Female Sockets, Plug			2	Bayonet Lock		Environment Sealed				5	125 °C	-65 ░C					Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)		Plastic	Gold	Crimp	5 A
