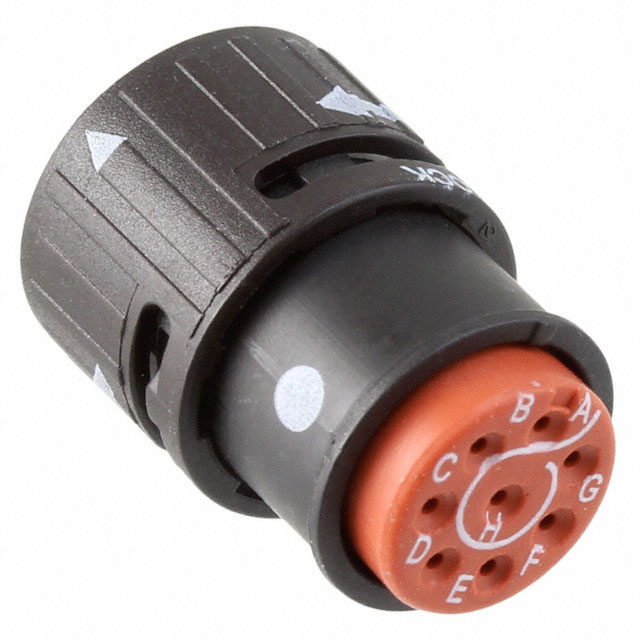

SJS830100
ActiveAMPHENOL PCD
CONN PLUG HSG FMALE 8POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
SJS830100
ActiveAMPHENOL PCD
CONN PLUG HSG FMALE 8POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SJS830100 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 22D |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | A |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 7 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.83 | |
| 10 | $ 28.75 | |||
| 25 | $ 27.51 | |||
| 50 | $ 26.62 | |||
| 100 | $ 25.73 | |||
| 250 | $ 24.31 | |||
Description
General part information
SJS830100
8 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Documents
Technical documentation and resources
No documents available
