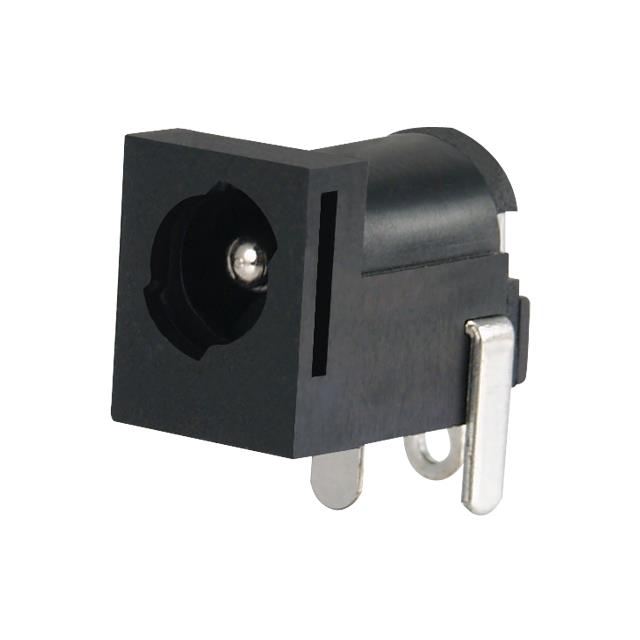

Specification	KLDHCX-0202-AP-LT

Actual Diameter (ID)	0.079 in
Actual Diameter (OD)	0.224 in
Body Color	Black
Connector Type	Jack
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating	Tin
Current Rating	5 A
Gender	Male
Housing Material	PBT, Polybutylene Terephthalate
Industry Recognized Mating Diameter (ID)	2 mm
Industry Recognized Mating Diameter (OD)	5.5 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Conductors	2
Number of Contacts	3
Shielding	Unshielded
Termination	Solder
Voltage - Rated	24 VAC

KLDHCX Series

Part	Shielding	Actual Diameter (ID)	Actual Diameter (OD)	Features	Number of Contacts	Number of Conductors	Current Rating	Gender	Connector Type	Internal Switch(s)	Mounting Type	Termination	Material Flammability Rating	Voltage - Rated	Industry Recognized Mating Diameter (OD)	Industry Recognized Mating Diameter (ID)	Body Color	Contact Material	Housing Material	Contact Material - Plating	Operating Temperature (Max)	Operating Temperature (Min)
Kycon, Inc. KLDHCX-0202-A-LT	Unshielded	0.079 in	0.224 in	Locking	3	2	5 A	Male	Jack	Normally Closed Single Switch	Right Angle Through Hole	Solder	UL94 V-0	24 VAC	5.5 mm	2 mm	Black	Brass Phosphor Bronze	PBT Polybutylene Terephthalate	Tin
Kycon, Inc. KLDHCX-0202-A	Unshielded	0.079 in	0.252 in		3	2	5 A	Male	Jack	Normally Closed Single Switch	Right Angle Through Hole	Solder	UL94 V-0	24 VAC	5.5 mm	2 mm	Black	Brass Phosphor Bronze	PBT Polybutylene Terephthalate	Tin
Kycon, Inc. KLDHCX-0202-AP-LT	Unshielded	0.079 in	0.224 in		3	2	5 A	Male	Jack	Normally Closed Single Switch	Right Angle Through Hole	Solder	UL94 V-0	24 VAC	5.5 mm	2 mm	Black	Brass Phosphor Bronze	PBT Polybutylene Terephthalate	Tin
Kycon, Inc. KLDHCX-MM-0202-BTR	Unshielded	0.098 in	0.236 in		3	2	5 A	Male	Jack	Normally Closed Single Switch	Board Cutout Right Angle Through Hole	Solder	UL94 V-0	24 VAC	5.5 mm	2.5 mm					70 °C	-25 °C
Kycon, Inc. KLDHCX-0202-B	Unshielded	0.079 in	0.252 in		3	2	5 A	Male	Jack	Normally Closed Single Switch	Right Angle Through Hole	Solder	UL94 V-0	24 VAC	5.5 mm	2 mm	Black	Brass Phosphor Bronze	PBT Polybutylene Terephthalate	Tin
