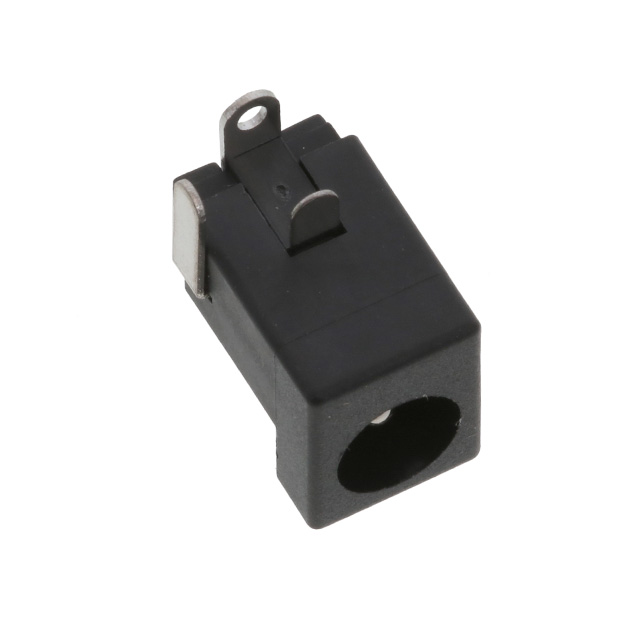

KLDHCX-0202-A
ActiveKycon, Inc.
POWER JACK, HIGH CURRENT 2.0MM D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KLDHCX-0202-A
ActiveKycon, Inc.
POWER JACK, HIGH CURRENT 2.0MM D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KLDHCX-0202-A |
|---|---|
| Actual Diameter [diameter] | 0.252 ", 0.079 in |
| Actual Diameter [diameter] | 2 mm, 6.4 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
KLDHCX Series
| Part | Actual Diameter [diameter] | Actual Diameter [diameter] | Current Rating (Amps) | Voltage - Rated | Contact Material - Plating | Number of Positions/Contacts | Termination | Connector Type | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Gender | Material Flammability Rating | Mounting Type | Shielding | Body Color | Housing Material | Internal Switch(s) | Contact Material | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kycon, Inc. | 0.079 in 0.252 " | 2 mm 6.4 mm | 5 A | 24 VDC | Tin | 2 Conductors 3 Conductors | Solder | Jack | 0.079 in 0.217 " | 2 mm 5.5 mm | Male | UL94 V-0 | Through Hole Right Angle | Unshielded | Black | Polybutylene Terephthalate (PBT) | Normally Closed Single Switch | Brass Phosphor Bronze | ||||
Kycon, Inc. | 5 A | 24 VDC | Tin | 2 Conductors 3 Conductors | Solder | Jack | 0.079 in 0.217 " | 2 mm 5.5 mm | Male | UL94 V-0 | Through Hole Right Angle | Unshielded | Black | Polybutylene Terephthalate (PBT) | Normally Closed Single Switch | Brass Phosphor Bronze | 2 mm | 0.224 in | 5.7 mm | 0.079 " | ||
Kycon, Inc. | 0.079 in 0.252 " | 2 mm 6.4 mm | 5 A | 24 VDC | Tin | 2 Conductors 3 Conductors | Solder | Jack | 0.079 in 0.217 " | 2 mm 5.5 mm | Male | UL94 V-0 | Through Hole Right Angle | Unshielded | Black | Polybutylene Terephthalate (PBT) | Normally Closed Single Switch | Brass Phosphor Bronze |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.38 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.07 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.77 | |||
| 2500 | $ 0.71 | |||
Description
General part information
KLDHCX Series
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
