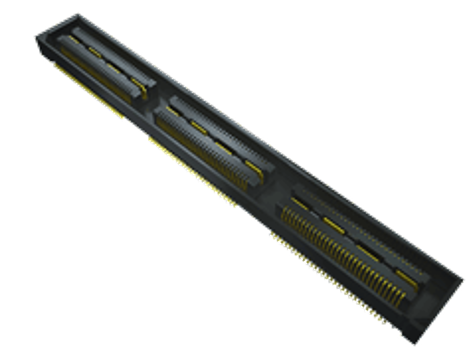

Samtec-QSH-030-01-F-D Connector Headers and PCB Receptacles Conn Micro High Speed Socket Strip SKT 60 POS 0.5mm Solder ST Top Entry SMD Q Strip® Tray

QSH-030-01-F-D

Active
Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 60 POS 0.5MM SOLDER ST TOP ENTRY SMD Q STRIP® TRAY

Find alt
Samtec-QSH-030-01-F-D Connector Headers and PCB Receptacles Conn Micro High Speed Socket Strip SKT 60 POS 0.5mm Solder ST Top Entry SMD Q Strip® Tray

QSH-030-01-F-D

Active
Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 60 POS 0.5MM SOLDER ST TOP ENTRY SMD Q STRIP® TRAY

Find alt

Description

General part information

QSH-030 Series

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

SpecificationQSH-030-01-F-D
Connector TypeCenter Strip Contacts, Receptacle
Contact FinishGold
Contact Finish Thickness3 µin
FeaturesGround Bus (Plane)
Height Above Board0.128 in
Mated Stacking Height Options25mm, 16mm, 8mm, 11mm, 14mm, 5mm, 19mm
Mounting TypeSurface Mount
Number of Positions60
Number of Rows2
Pitch0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
