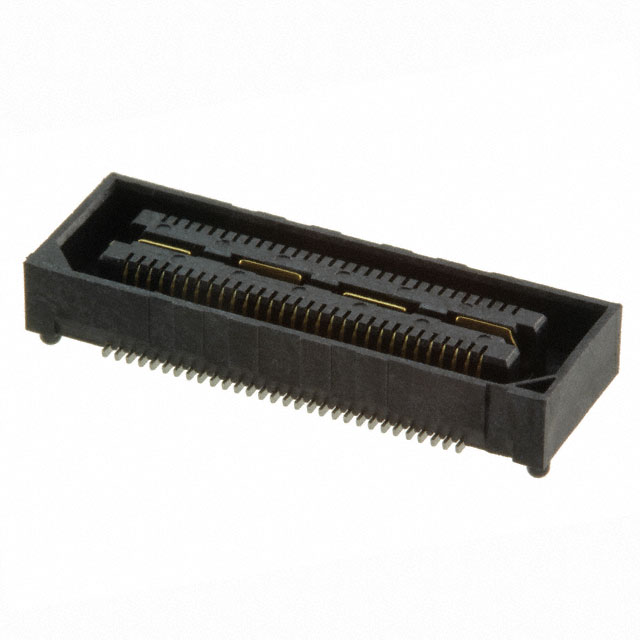

QSH-030-01-L-D-A-K-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 60 POS 0.5MM SOLDER ST TOP ENTRY SMD Q STRIP® T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSH Series Other Related Documents 03 Datasheet +2

QSH-030-01-L-D-A-K-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 60 POS 0.5MM SOLDER ST TOP ENTRY SMD Q STRIP® T/R

Deep-Dive with AI

DocumentsQSH Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSH-030-01-L-D-A-K-TR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QSH-030 Series

Part	Contact Finish	Height Above Board	Height Above Board	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QSH-030-01-L-D-A-K-TR	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Pick and Place	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-A-L-K	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Latches Pick and Place	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-S-D-K-TR	Gold	3.25 mm	0.128 in	Ground Bus (Plane) Pick and Place	60	30 Áin	0.76 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-H-D-A-L	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Latches	60	30 Áin	0.76 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-F-D-RA	Gold			Ground Bus (Plane)	60	3 Áin	0.076 Ám	0.5 mm	0.02 in	Surface Mount Right Angle	2		Center Strip Contacts Receptacle	0.333 in	8.45 mm
Samtec Inc. QSH-030-01-F-D-EM2	Gold			Ground Bus (Plane)	60	3 Áin	0.076 Ám	0.5 mm	0.02 in	Board Edge Straddle Mount	2		Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-A-GP-K	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Mating Flange Pick and Place	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-EM2	Gold			Ground Bus (Plane)	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Board Edge Straddle Mount	2		Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-L-TR	Gold	3.25 mm	0.128 in	Ground Bus (Plane) Latches	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-S-D-A-K-TR	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Pick and Place	60	30 Áin	0.76 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.77
		50	$ 5.29
		100	$ 4.96
		250	$ 4.47
	Digi-Reel®	1	$ 5.77
		50	$ 5.29
		100	$ 4.96
		250	$ 4.47
	Tape & Reel (TR)	525	$ 4.21
		1050	$ 3.94
		2625	$ 3.21
