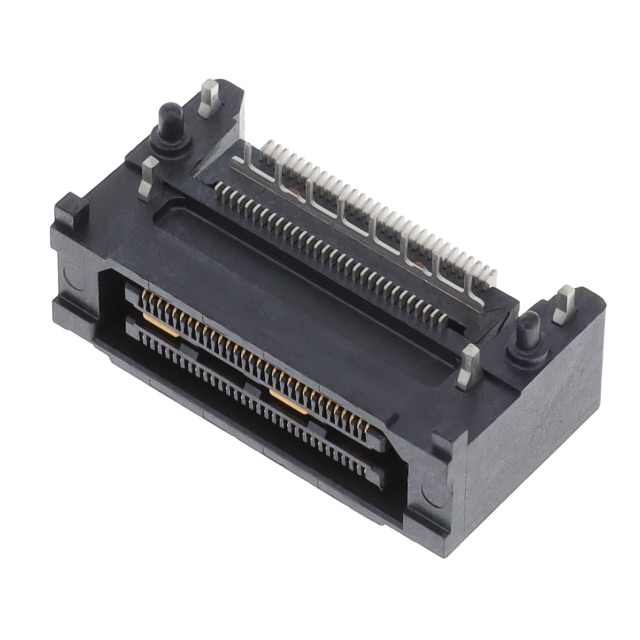

QSH-030-01-F-D-RA

Active

Samtec Inc.

CONN RCPT 60POS R/A SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSH-020-01-F-D-DP-RA Datasheet 02 QSH Series Other Related Documents 03 +2

QSH-030-01-F-D-RA

Active

Samtec Inc.

CONN RCPT 60POS R/A SMD GOLD

Deep-Dive with AI

DocumentsQSH-020-01-F-D-DP-RA Datasheet 02 QSH Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSH-030-01-F-D-RA

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Ground Bus (Plane)
Height Above Board [z]	0.333 in
Height Above Board [z]	8.45 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QSH-030 Series

Part	Contact Finish	Height Above Board	Height Above Board	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QSH-030-01-L-D-A-K-TR	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Pick and Place	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-A-L-K	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Latches Pick and Place	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-S-D-K-TR	Gold	3.25 mm	0.128 in	Ground Bus (Plane) Pick and Place	60	30 Áin	0.76 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-H-D-A-L	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Latches	60	30 Áin	0.76 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-F-D-RA	Gold			Ground Bus (Plane)	60	3 Áin	0.076 Ám	0.5 mm	0.02 in	Surface Mount Right Angle	2		Center Strip Contacts Receptacle	0.333 in	8.45 mm
Samtec Inc. QSH-030-01-F-D-EM2	Gold			Ground Bus (Plane)	60	3 Áin	0.076 Ám	0.5 mm	0.02 in	Board Edge Straddle Mount	2		Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-A-GP-K	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Mating Flange Pick and Place	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-EM2	Gold			Ground Bus (Plane)	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Board Edge Straddle Mount	2		Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-L-D-L-TR	Gold	3.25 mm	0.128 in	Ground Bus (Plane) Latches	60	10 Áin	0.25 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle
Samtec Inc. QSH-030-01-S-D-A-K-TR	Gold	3.25 mm	0.128 in	Board Guide Ground Bus (Plane) Pick and Place	60	30 Áin	0.76 Ám	0.5 mm	0.02 in	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Center Strip Contacts Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.95
		10	$ 14.51
		25	$ 14.14
		50	$ 13.46
		100	$ 11.48
		250	$ 10.20

Description

General part information

QSH-030 Series

60 Position Connector Receptacle, Center Strip Contacts Surface Mount, Right Angle Gold
