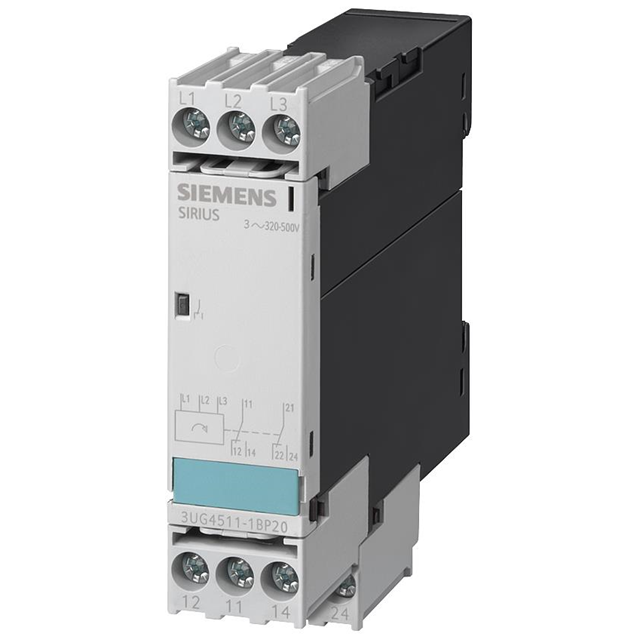

3UG45111BQ20

Active

Siemens

PHASE SEQUENCE MONITORING

Search across all available documentation for this part.

Active

Siemens

PHASE SEQUENCE MONITORING

Technical Specifications

Parameters and characteristics for this part

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Trip Range [Max]	Trip Range [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Circuit	Contact Rating @ Voltage	Mounting Type
Siemens 3UG45112BP20	Phase Sequence	-25 °C	60 °C	500 A AC	320 V AC	500 VAC	320 VAC	DPDT (2 Form C)	3 A 400 VAC	DIN Rail
Siemens 3UG45112AN20	Phase Sequence	-25 °C	60 °C	260 V AC	160 V AC	260 VAC	160 VAC		3 A 400 VAC	DIN Rail
Siemens 3UG45112BQ20	Phase Sequence	-25 °C	60 °C	690 V AC	420 V AC	690 VAC	420 VAC	DPDT (2 Form C)	3 A 400 VAC	DIN Rail
Siemens 3UG45112AQ20	Phase Sequence	-25 °C	60 °C	690 V AC	420 V AC	690 VAC	420 VAC		3 A 400 VAC	DIN Rail
Siemens 3UG45111BQ20	Phase Sequence	-25 °C	60 °C	690 V AC	420 V AC	690 VAC	420 VAC	DPDT (2 Form C)	3 A 400 VAC	DIN Rail
Siemens 3UG45112BN20	Phase Sequence	-25 °C	60 °C	260 V AC	160 V AC	260 VAC	160 VAC	DPDT (2 Form C)	3 A 400 VAC	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 227.10

General part information

Phase Sequence 420 ~ 690VAC
