845-042 Series

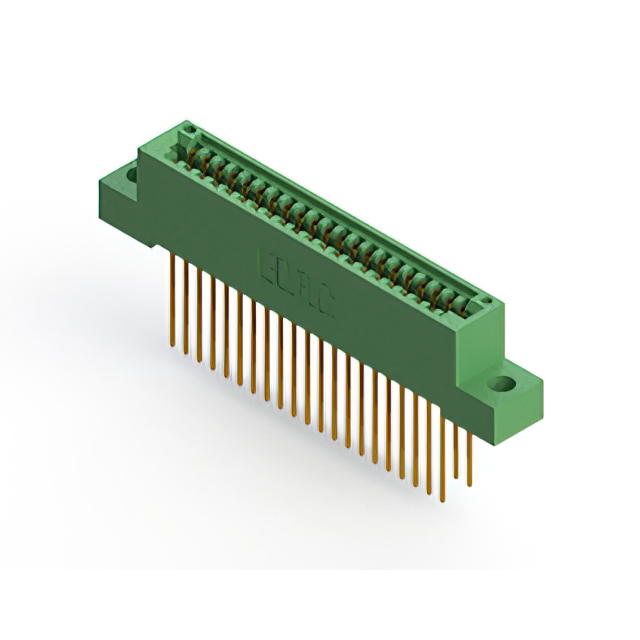

42 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	845-042-542-204

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	42, 21
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

845-042 Series

...

Part	Card Thickness (Min)	Card Thickness (Max)	Number of Rows	Termination	Contact Finish	Pitch	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Card Type	Number of Positions	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Read Out	Contact Material	Mounting Type	Gender	Material - Insulation	Termination Rows
EDAC Inc. 845-042-523-204	0.054 in	0.07 in	2	Solder	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Dual Edge Non Specified	21 42	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Dual	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	2 rows
EDAC Inc. 845-042-558-203	0.054 in	0.07 in	2	Solder	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Dual Edge Non Specified	21 42	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Dual	Copper Alloy	Right Angle Through Hole	Female	DAP Diallyl Phthalate	2 rows
EDAC Inc. 845-042-523-208	0.054 in	0.07 in	2	Solder	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Dual Edge Non Specified	21 42		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Dual	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	2 rows
EDAC Inc. 845-042-521-408	0.054 in	0.07 in	1	Solder	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Non Specified Single Edge	42		4-40 Threaded Insert Top Mount Opening	10 Ąin	Single	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	1 rows
EDAC Inc. 845-042-540-408	0.054 in	0.07 in	1	Wire Wrap	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Non Specified Single Edge	42		4-40 Threaded Insert Top Mount Opening	10 Ąin	Single	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	1 rows
EDAC Inc. 845-042-520-604	0.054 in	0.07 in	1	Solder	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Non Specified Single Edge	42	0.156 in	Top Mount Opening Unthreaded	10 Ąin	Single	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	1 rows
EDAC Inc. 845-042-520-404	0.054 in	0.07 in	1	Solder	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Non Specified Single Edge	42	0.156 in	Top Mount Opening Unthreaded	10 Ąin	Single	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	1 rows
EDAC Inc. 845-042-542-204	0.054 in	0.07 in	2	Wire Wrap	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Dual Edge Non Specified	21 42	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Dual	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	2 rows
EDAC Inc. 845-042-541-604	0.054 in	0.07 in	1	Wire Wrap	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Non Specified Single Edge	42	0.156 in	Top Mount Opening Unthreaded	10 Ąin	Single	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	1 rows
EDAC Inc. 845-042-540-201	0.054 in	0.07 in	2	Wire Wrap	Gold	0.1 in	Green	125 °C	-40 °C	Cantilever	Dual Edge Non Specified	21 42			10 Ąin	Dual	Copper Alloy	Through Hole	Female	DAP Diallyl Phthalate	2 rows
