845-042-523-208
ActiveEDAC Inc.

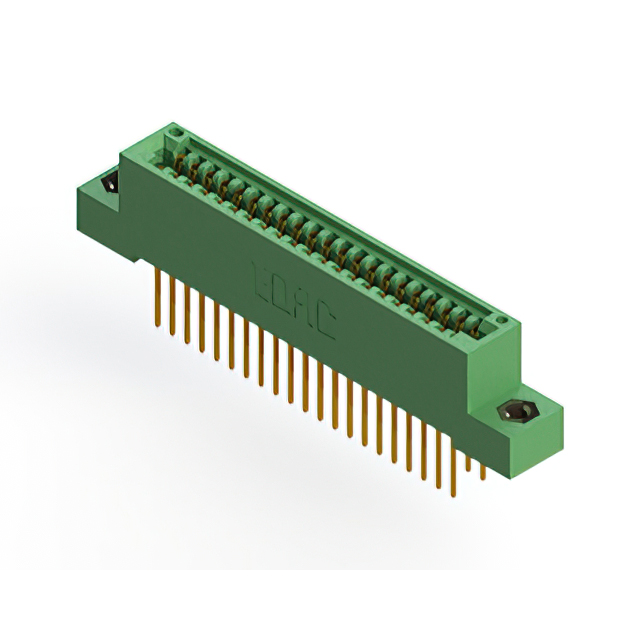

CONN EDGE DUAL FMALE 42POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-042-523-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-042-523-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-042 Series
...
| Part | Number of Positions | Gender | Material - Insulation | Mounting Type | Read Out | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination Rows | Contact Type | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole Right Angle | Dual | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Cantilever | |
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Dual | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Cantilever | |
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Cantilever | |||
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Single | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Cantilever | 42 | ||
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Single | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Cantilever | 42 | ||
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Single | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Non Specified - Single Edge | 1 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Cantilever | 42 |
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Single | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Non Specified - Single Edge | 1 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Cantilever | 42 |
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Dual | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Cantilever | |
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Single | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Non Specified - Single Edge | 1 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 1 | Cantilever | 42 |
EDAC Inc. | 42 | Female | Diallyl Phthalate (DAP) | Through Hole | Dual | Non Specified - Dual Edge | 2 | 125 °C | -40 °C | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Green | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
