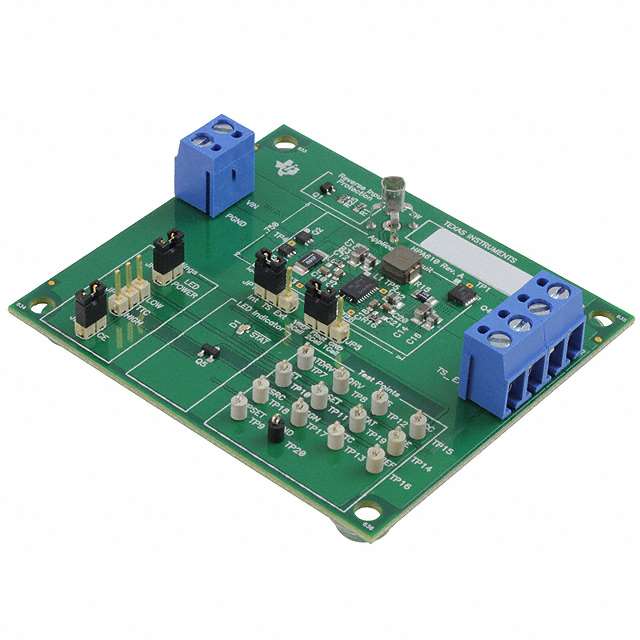

BQ24170EVM-610-15V
ActiveEVAL MODULE FOR BQ24170-610-15V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24170EVM-610-15V | BQ24170 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 4 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Current, Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Number of Cells | - | 3 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol | Li-Ion (1 Cell), Li-Ion / Li-Pol |
| Primary Attributes [Max] [custom] | 3 | 3 |
| Primary Attributes [Min] [custom] | 1 | 1 |
| Programmable Features | - | Current |
| Secondary Attributes | - | On-Board LEDs |
| Secondary Attributes [Max] | 16 V | 16 V |
| Secondary Attributes [Min] | 4.5 V | 4.5 V |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-VQFN (5.5x3.5) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24170 | BQ24170 |
| Voltage - Supply (Max) | - | 17 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | N/A | 1 | $ 123.71 | |
| Digikey | Box | 1 | $ 118.80 | |
| Mouser Electronics | N/A | 1 | $ 123.75 | |
BQ24170 Series
Standalone 1-3 cell 4A synchronous Buck battery charger with Power Path selector
| Part | Package / Case | Charge Current - Max [Max] | Fault Protection | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Battery Pack Voltage | Voltage - Supply (Max) [Max] | Number of Cells [Min] | Number of Cells [Max] | Supplier Device Package | Current - Charging | Mounting Type | Programmable Features | Primary Attributes | Embedded | Utilized IC / Part | Secondary Attributes | Supplied Contents | Function | Type | Primary Attributes [Max] [custom] | Primary Attributes [Min] [custom] | Secondary Attributes [Max] | Secondary Attributes [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24170RGYR | 24-VFQFN Exposed Pad | 4 A | Over Current, Over Temperature, Over Voltage | 85 °C | -40 °C | Lithium Ion/Polymer | 4.2 V | 17 V | 1 | 3 | 24-VQFN (5.5x3.5) | Constant - Programmable | Surface Mount | Current | |||||||||||
Texas Instruments BQ24170EVM-610-5V | Li-Ion (1 Cell) | BQ24170 | On-Board LEDs | Board(s) | Battery Charger | Power Management | |||||||||||||||||||
Texas Instruments BQ24170RGYT | 24-VFQFN Exposed Pad | 4 A | Over Current, Over Temperature, Over Voltage | 85 °C | -40 °C | Lithium Ion/Polymer | 4.2 V | 17 V | 1 | 3 | 24-VQFN (5.5x3.5) | Constant - Programmable | Surface Mount | Current | |||||||||||
Texas Instruments BQ24170EVM-610-15V | Li-Ion / Li-Pol | BQ24170 | Board(s) | Battery Charger | Power Management | 3 | 1 | 16 V | 4.5 V |
Description
General part information
BQ24170 Series
The bq2417x device is a highly integrated stand-alone Li-Ion and Li-Polymer switched-mode battery charger with two integrated N-channel power MOSFETs. The device offers a constant-frequency synchronous PWM controller with high-accuracy regulation of input current, charge current, and voltage. The bq2417x closely monitors the battery pack temperature to allow charge only in a preset temperature window. The bq24170 charges one, two, or three cells (selected by CELL pin), and the bq24172 is adjustable for up to three series Li+ cells.
The device charges the battery in three phases: precondictioning, constant current, and constant voltage.
Charge is terminated when the current reaches 10% of the fast charge rate. A programmable charge timer offers a safety backup. The bq2417x automatically restarts the charge cycle if the battery voltage falls below an internal threshold, and enters a low-quiescent current sleep mode when the input voltage falls below the battery voltage.
