Technical Specifications
Parameters and characteristics for this part
| Specification | FN2200-50-34 |
|---|---|
| Applications | Photovoltaic Inverter |
| Approval Agency | cURus, ENEC |
| Configuration | Single Stage |
| Current | 50 A |
| Filter Type | DC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated DC | 1.2 kV |
| Voltage - Rated DC | 1.2 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 158.42 | |
| 12 | $ 152.96 | |||
| 30 | $ 147.50 | |||
| 42 | $ 142.26 | |||
Description
General part information

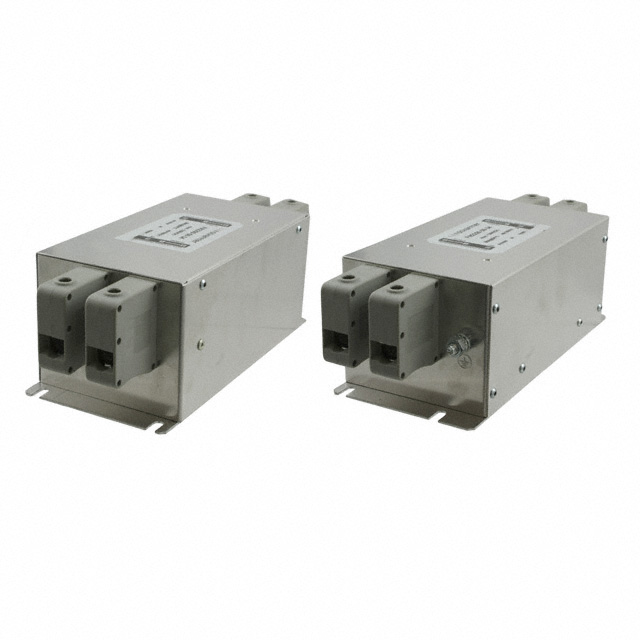

Schaffner FN2200 Series
50 A DC Filter, 1200 VDC, Terminal Block Input, Terminal Block Output, Schaffner FN2200
