FN2200-75-34

Active

TE Connectivity Raychem Cable Protection

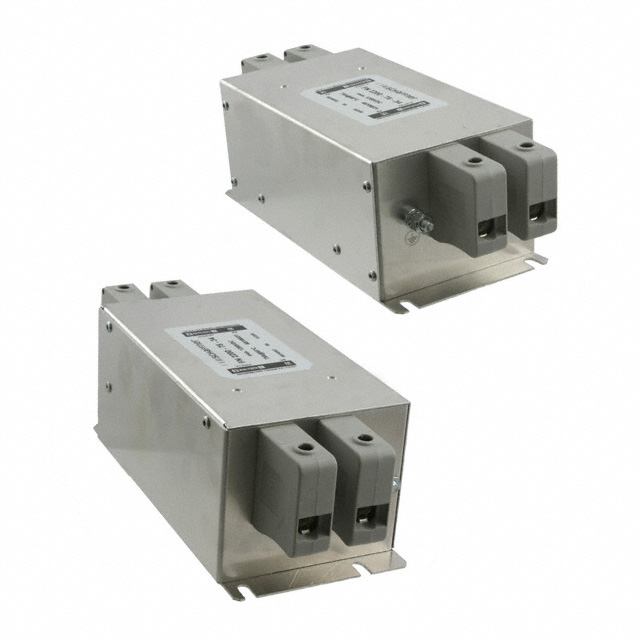

LINE FILTER 1.2KVDC 75A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2200-75-34

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 1.2KVDC 75A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2200-75-34

Applications	Photovoltaic Inverter
Approval Agency	cURus, ENEC
Configuration	Single Stage
Current	75 A
Filter Type	DC
Mounting Type	Chassis Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Termination Style	Terminal Block
Voltage - Rated DC	1.2 kV
Voltage - Rated DC	1.2 kV

Schaffner FN2200 Series

Part	Applications	Mounting Type	Current	Voltage - Rated DC	Voltage - Rated DC	Termination Style	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Configuration
TE Connectivity Raychem Cable Protection FN2200B-100-35	Photovoltaic Inverter	Chassis Mount	100 A	1.2 kV	1.2 kV	Terminal Block	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200-800-99	Photovoltaic Inverter	Chassis Mount	800 A	1.2 kV	1.2 kV	Terminal Post	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200-400-99	Photovoltaic Inverter	Chassis Mount	400 A	1.2 kV	1.2 kV	Terminal Post	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200-75-34	Photovoltaic Inverter	Chassis Mount	75 A	1.2 kV	1.2 kV	Terminal Block	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200B-25-33	Photovoltaic Inverter	Chassis Mount	25 A	1.2 kV	1.2 kV	Terminal Block	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200-50-34	Photovoltaic Inverter	Chassis Mount	50 A	1.2 kV	1.2 kV	Terminal Block	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200-25-33	Photovoltaic Inverter	Chassis Mount	25 A	1.2 kV	1.2 kV	Terminal Block	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200B-150-40	Photovoltaic Inverter	Chassis Mount	150 A	1.2 kV	1.2 kV	Terminal Block	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200B-1000-99	Photovoltaic Inverter	Chassis Mount	1 kA	1.2 kV	1.2 kV	Terminal Post	cURus ENEC	100 °C	-40 °C	DC	Single Stage
TE Connectivity Raychem Cable Protection FN2200B-600-99	Photovoltaic Inverter	Chassis Mount	600 A	1.2 kV	1.2 kV	Terminal Post	cURus ENEC	100 °C	-40 °C	DC	Single Stage

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 198.02
		10	$ 167.36

Description

General part information

Schaffner FN2200 Series

DC EMC/EMI Line Filter 75 A 1200V (1.2kV) Single Stage Terminal Block
