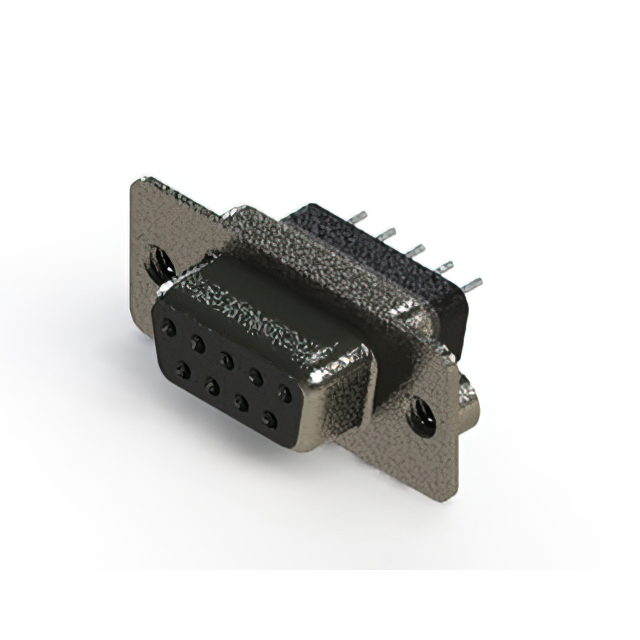

CONN D-SUB RCPT 9POS VERT SOLDER

628-009-228-062

Active

EDAC Inc.

CONN D-SUB RCPT 9POS VERT SOLDER

Description Specifications Series Pricing CAD Documents

Description

General part information

628-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	628-009-228-062

Color	Black
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal, Power
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Finish	Nickel Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

628-009 Series

...

Part	Contact Finish	Flange Feature	Number of Rows	Connector Type	Contact Finish Thickness	Termination	Mounting Type	Connector Style	Shell Size	Connector Layout	Number of Positions	Features	Contact Type	Current Rating (Per Contact)	Material Flammability Rating	Shell Material	Finish	Color	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 628-009-322-048	Gold	Board Side (4-40)	2	Female Sockets Receptacle	15 µin	Solder Cup	Free Hanging (In-Line)	D-Sub	1	DE E	9	Shielded	Power Signal	3 A	UL94 V-0	Steel	Nickel Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-009-361-257	Gold	Board Side (4-40)	2	Female Sockets Receptacle	15 µin	Solder	Through Hole	D-Sub	1	DE E	9	Board Lock Shielded	Power Signal	3 A	UL94 V-0	Steel	Tin Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-009-624-216	Gold	Board Side (4-40)	2	Female Sockets Receptacle	30 µin	Solder	Through Hole	D-Sub	1	DE E	9	Board Lock Shielded	Power Signal	3 A	UL94 V-0	Steel	Tin Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-009-228-242	Gold	Board Side (4-40)	2	Female Sockets Receptacle	0	Solder	Through Hole	D-Sub	1	DE E	9	Shielded	Power Signal	3 A	UL94 V-0	Steel	Tin Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 628-009-321-077	Gold	Board Side (4-40)	2	Female Sockets Receptacle	15 µin	Solder	Through Hole	D-Sub	1	DE E	9	Board Lock Shielded	Power Signal	3 A	UL94 V-0	Steel	Nickel Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-009-228-062	Gold	Board Side (4-40)	2	Female Sockets Receptacle	0	Solder	Through Hole	D-Sub	1	DE E	9	Shielded	Power Signal	3 A	UL94 V-0	Steel	Nickel Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 628-009-321-056	Gold	Board Side (4-40)	2	Female Sockets Receptacle	15 µin	Solder	Through Hole	D-Sub	1	DE E	9	Board Lock Shielded	Power Signal	3 A	UL94 V-0	Steel	Nickel Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic
EDAC Inc. 628-009-241-056	Gold	Board Side (4-40)	2	Female Sockets Receptacle	0	Solder	Through Hole	D-Sub	1	DE E	9	Board Lock Shielded	Power Signal	3 A	UL94 V-0	Steel	Nickel Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 628-009-220-212	Gold	Board Side (4-40)	2	Female Sockets Receptacle	0	Solder	Through Hole	D-Sub	1	DE E	9	Shielded	Power Signal	3 A	UL94 V-0	Steel	Tin Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic	Flash	Flash
EDAC Inc. 628-009-322-049	Gold	Board Side (4-40)	2	Female Sockets Receptacle	15 µin	Solder Cup	Free Hanging (In-Line)	D-Sub	1	DE E	9	Shielded	Power Signal	3 A	UL94 V-0	Steel	Nickel Plated	Black	Brass	-55 °C	85 °C	Polyester Thermoplastic
