628-009-322-048

Active

EDAC Inc.

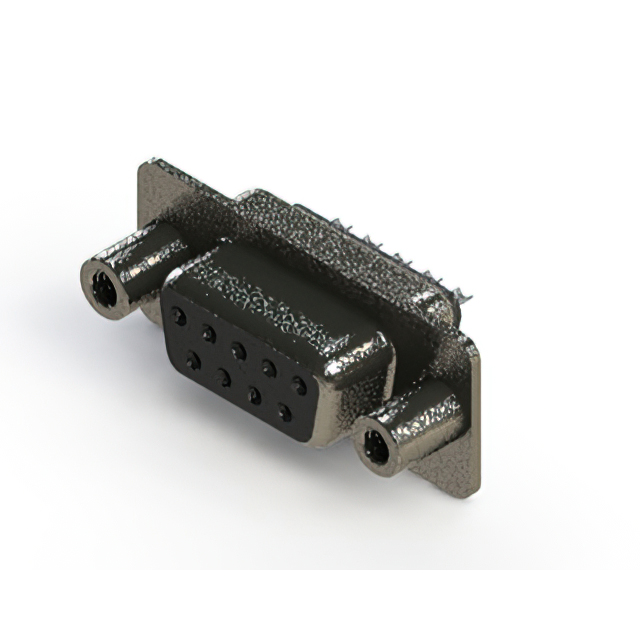

CONN D SUB RCPT 9POS VERT METAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-009-322-048

Active

EDAC Inc.

CONN D SUB RCPT 9POS VERT METAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-009-322-048

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal and Power
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

628-009 Series

...

Part	Contact Material	Features	Number of Rows	Number of Positions	Shell Material, Finish	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Type	Material Flammability Rating	Flange Feature	Dielectric Material	Termination	Contact Finish Thickness
EDAC Inc. 628-009-322-048	Brass	Shielded	2	9	Nickel Plated Steel	Free Hanging (In-Line)	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub	15 µin	0.38 µm	Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic
EDAC Inc. 628-009-361-257	Brass	Board Lock Shielded	2	9		Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub	15 µin	0.38 µm	Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder
EDAC Inc. 628-009-624-216	Brass	Board Lock Shielded	2	9		Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub	30 Áin	0.76 Ám	Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder
EDAC Inc. 628-009-228-242	Brass	Shielded	2	9		Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub			Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder	Flash
EDAC Inc. 628-009-321-077	Brass	Board Lock Shielded	2	9	Nickel Plated Steel	Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub	15 µin	0.38 µm	Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder
EDAC Inc. 628-009-228-062	Brass	Shielded	2	9	Nickel Plated Steel	Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub			Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder	Flash
EDAC Inc. 628-009-321-056	Brass	Board Lock Shielded	2	9	Nickel Plated Steel	Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub	15 µin	0.38 µm	Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder
EDAC Inc. 628-009-241-056	Brass	Board Lock Shielded	2	9	Nickel Plated Steel	Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub			Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder	Flash
EDAC Inc. 628-009-220-212	Brass	Shielded	2	9		Through Hole	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub			Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic	Solder	Flash
EDAC Inc. 628-009-322-049	Brass	Shielded	2	9	Nickel Plated Steel	Free Hanging (In-Line)	3 A	85 °C	-55 °C	Gold	Signal and Power	DE E	1	D-Sub	15 µin	0.38 µm	Black	Receptacle Female Sockets	UL94 V-0	4-40 Board Side	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1000	$ 1.30

Description

General part information

628-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector
