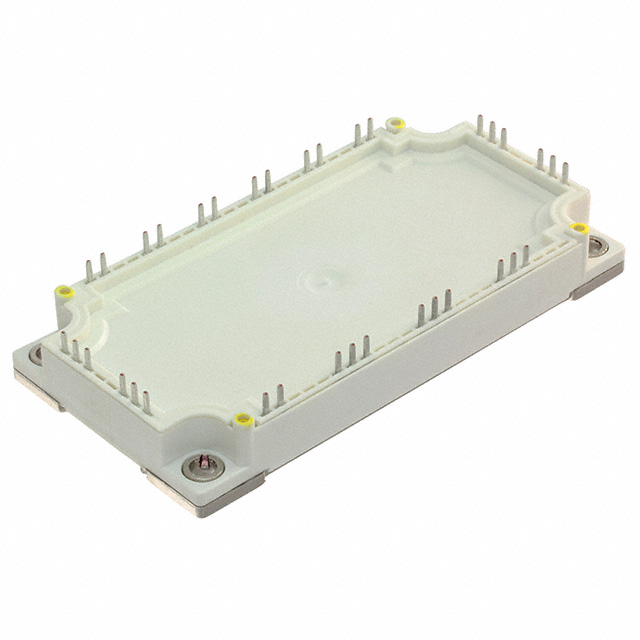

FS200R12KT4RB11BOSA1

Active

Infineon Technologies

THE FS200R12KT4R_B11 IS A SIXPACK IGBT4 - T4 MODULE IN A ECONOPACK™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 200 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FS200R12KT4RB11BOSA1

Active

Infineon Technologies

THE FS200R12KT4R_B11 IS A SIXPACK IGBT4 - T4 MODULE IN A ECONOPACK™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 200 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS200R12KT4RB11BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	280 A
Current - Collector Cutoff (Max) [Max]	1 mA
Input	Standard
Input Capacitance (Cies) @ Vce	14 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Package / Case	Module
Power - Max [Max]	1000 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FS200R12 Series

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Configuration	IGBT Type	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Mounting Type	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Input	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies FS200R12PT4BOSA1	1200 V	Module	Three Phase Inverter	Trench Field Stop	1000 W	280 A	Module	Chassis Mount	14 nF	1 mA	Standard	2.15 V
Infineon Technologies FS200R12N3T4RB81BPSA1
Infineon Technologies FS200R12KT4RPBPSA1
Infineon Technologies FS200R12KT4RB11BOSA1	1200 V	Module	Three Phase Inverter		1000 W	280 A	Module	Chassis Mount	14 nF	1 mA	Standard	2.15 V
Infineon Technologies FS200R12W3T7B11BPSA1	1200 V		Three Phase Inverter	Trench Field Stop	20 mW	200 A	Module	Chassis Mount	40300 pF	20 µA	Standard	1.8 V	-40 C	175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 140.71
		10	$ 123.17

Description

General part information

FS200R12 Series

EconoPACK™31200 V, 200 A sixpackIGBT modulewith fast TRENCHSTOP™ IGBT4, NTC and PressFIT Contact Technology. Also available as variation with Soldering connection technology:FS200R12KT4R.
