FS200R12W3T7B11BPSA1

Active

Infineon Technologies

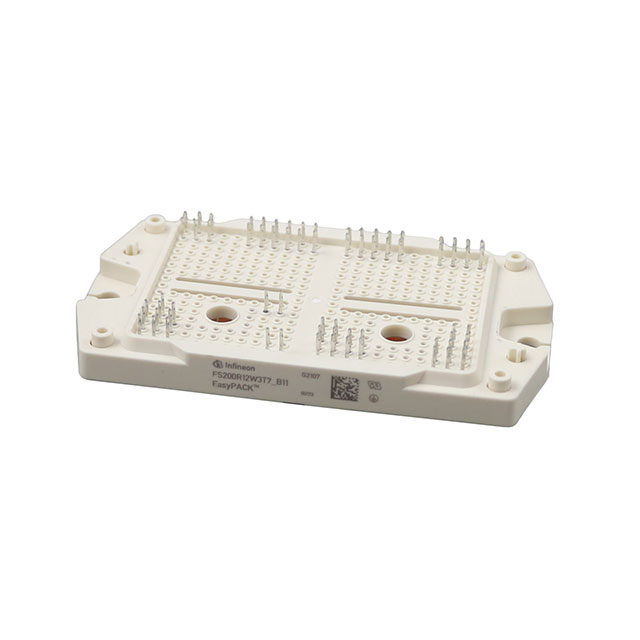

THE FS200R12W3T7_B11 IS A SIXPACK IGBT7 - T7 MODULE IN A EASYPACK™ 3B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 200 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FS200R12W3T7B11BPSA1

Active

Infineon Technologies

THE FS200R12W3T7_B11 IS A SIXPACK IGBT7 - T7 MODULE IN A EASYPACK™ 3B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 200 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS200R12W3T7B11BPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	200 A
Current - Collector Cutoff (Max) [Max]	20 µA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	40300 pF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Power - Max [Max]	20 mW
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FS200R12 Series

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Configuration	IGBT Type	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Mounting Type	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Input	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies FS200R12PT4BOSA1	1200 V	Module	Three Phase Inverter	Trench Field Stop	1000 W	280 A	Module	Chassis Mount	14 nF	1 mA	Standard	2.15 V
Infineon Technologies FS200R12N3T4RB81BPSA1
Infineon Technologies FS200R12KT4RPBPSA1
Infineon Technologies FS200R12KT4RB11BOSA1	1200 V	Module	Three Phase Inverter		1000 W	280 A	Module	Chassis Mount	14 nF	1 mA	Standard	2.15 V
Infineon Technologies FS200R12W3T7B11BPSA1	1200 V		Three Phase Inverter	Trench Field Stop	20 mW	200 A	Module	Chassis Mount	40300 pF	20 µA	Standard	1.8 V	-40 C	175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 110.02
Newark	Each	1	$ 99.78

Description

General part information

FS200R12 Series

EasyPACK™3B 1200 V, 200 AIGBT modulewithTRENCHSTOP™ IGBT7, Emitter Controlled 7 diode,PressFIT contact technologyand NTC. As a member of Easy3B package family, it enriches the product portfolio for industrial drives application.
