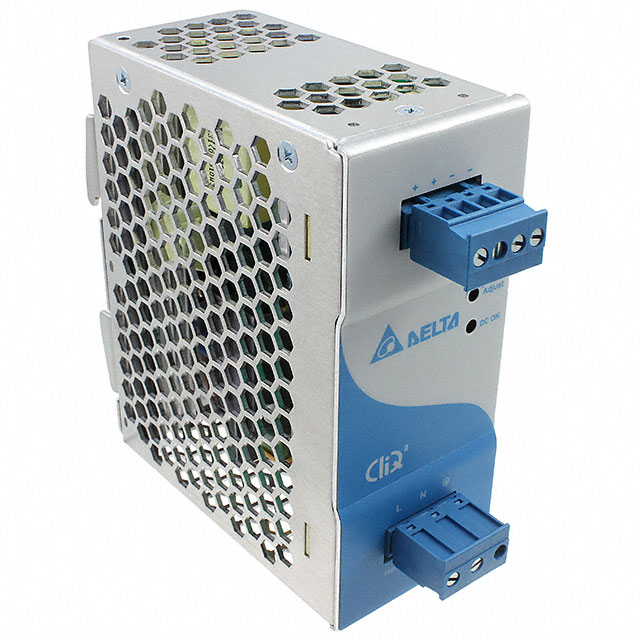

DRP024V120W1BN
ActiveDelta Electronics
AC/DC POWER SUPPLY SINGLE-OUT 24V 5A 120W 7-PIN CARTON
Deep-Dive with AI
Search across all available documentation for this part.
DRP024V120W1BN
ActiveDelta Electronics
AC/DC POWER SUPPLY SINGLE-OUT 24V 5A 120W 7-PIN CARTON
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRP024V120W1BN |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | EN, CE, CB Scheme, EAC, CSA, SIQ, UL |
| Current - Output (Max) [Max] | 5 A |
| Efficiency | 90 % |
| Features | PFC, Universal Input, Load Sharing, Adjustable Output, IP20 |
| Input Type | AC |
| Number of Outputs | 1 |
| Size / Dimension [x] | 4.87 " |
| Size / Dimension [x] | 123.7 mm |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [z] | 4.76 " |
| Size / Dimension [z] | 121 mm |
| Standard Number | 55032, 55011, 61000-6-2, 62368-1, 107.1-01, 60950-1, 50581, 61000-3-3, 55024, 61000-3-2, 61204-3, 508 |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
DRP024 Series
| Part | Number of Outputs | Power (Watts) | Features | Standard Number | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Applications | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Current - Output (Max) [Max] | Efficiency | Input Type | Approval Agency | Operating Temperature [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 1 | 240 W | Adjustable Output Load Sharing Universal Input | 107.1-01 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-6-1 61000-6-2 61204-3 62368-1 F47 | 24 V | 75 ¯C | -20 °C | 4000 V | 85 mm | 121 mm | 3.35 in | 118.5 mm | 4.76 " | 4.67 in | ITE (Commercial) | 85 VAC | 264 VAC | 10 A | 84 % | AC | ||
Delta Electronics | 1 | 480 W | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 1310 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 | 24 V | 4000 V | 118.6 mm | 121 mm | 4.67 in | 144 mm | 4.76 " | 5.76 in | ITE (Commercial) | 85 VAC | 264 VAC | 20 A | 92 % | AC | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL | -25 °C 75 °C | ||
Delta Electronics | 1 | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 24 V | 4000 V | 50 mm | 121 mm | 1.97 " | 123.7 mm | 4.76 " | 4.87 " | ITE (Commercial) | 85 VAC | 264 VAC | 5 A | 90 % | AC | CB Scheme CE CSA EAC EN SIQ UL | ||||
Delta Electronics | 1 | 480 W | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 | 24 V | 80 ¯C | -25 °C | 4000 V | 117.3 mm | 121 mm | 4.62 in | 140 mm | 4.76 " | 5.52 " | Hazardous Locations ITE (Commercial) | 320 VAC | 600 VAC | 20 A | 91 % | AC | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL | |
Delta Electronics | 1 | 480 W | Adjustable Output Load Sharing Universal Input | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1 F47 | 24 V | 75 ¯C | -20 °C | 4000 V | 160 mm | 121 mm | 6.3 " | 118.5 mm | 4.76 " | 4.67 in | ITE (Commercial) | 85 VAC | 264 VAC | 20 A | 88 % | AC | ||
Delta Electronics | 1 | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 24 V | 85 °C | -25 °C | 4000 V | ITE (Commercial) | 400 VAC | 500 VAC | 5 A | 88 % | AC | CB Scheme CE CSA EAC EN SIQ UL | ||||||||
Delta Electronics | 1 | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 24 V | 80 ¯C | -25 °C | 4000 V | ITE (Commercial) | 320 VAC | 600 VAC | 2.5 A | 86 % | AC | CB Scheme CE CSA EAC EN SIQ UL | ||||||||
Delta Electronics | 1 | Adjustable Output IP20 Load Sharing PFC Universal Input | 107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1 | 24 V | 80 ¯C | -25 °C | 4000 V | ITE (Commercial) | 320 VAC | 600 VAC | 2.5 A | 86 % | AC | ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 81.62 | |
| 24 | $ 79.07 | |||
| 48 | $ 76.52 | |||
| 72 | $ 70.15 | |||
| 120 | $ 67.85 | |||
Description
General part information
DRP024 Series
AC/DC POWER SUPPLY SINGLE-OUT 24V 5A 120W 7-PIN CARTON
